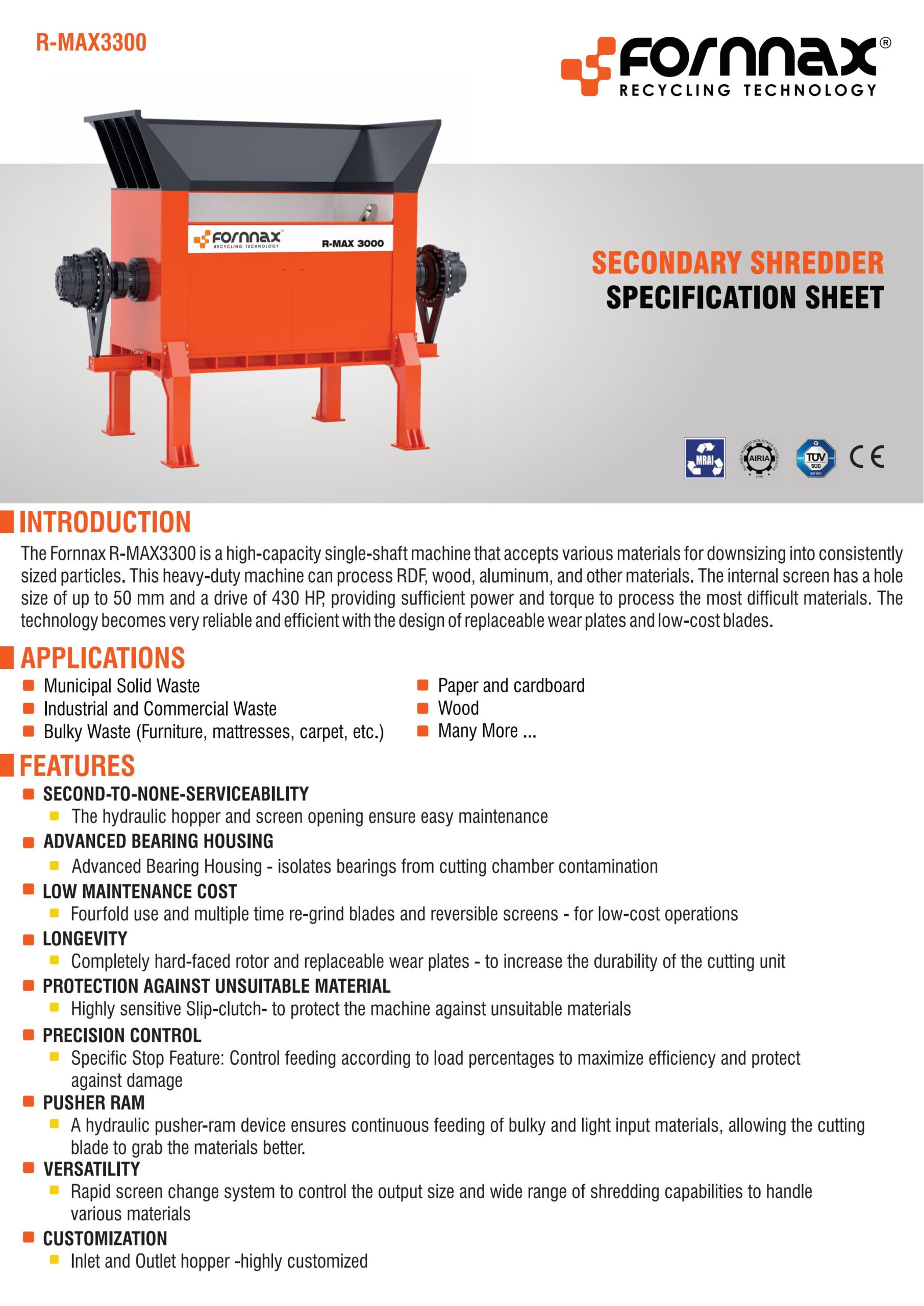

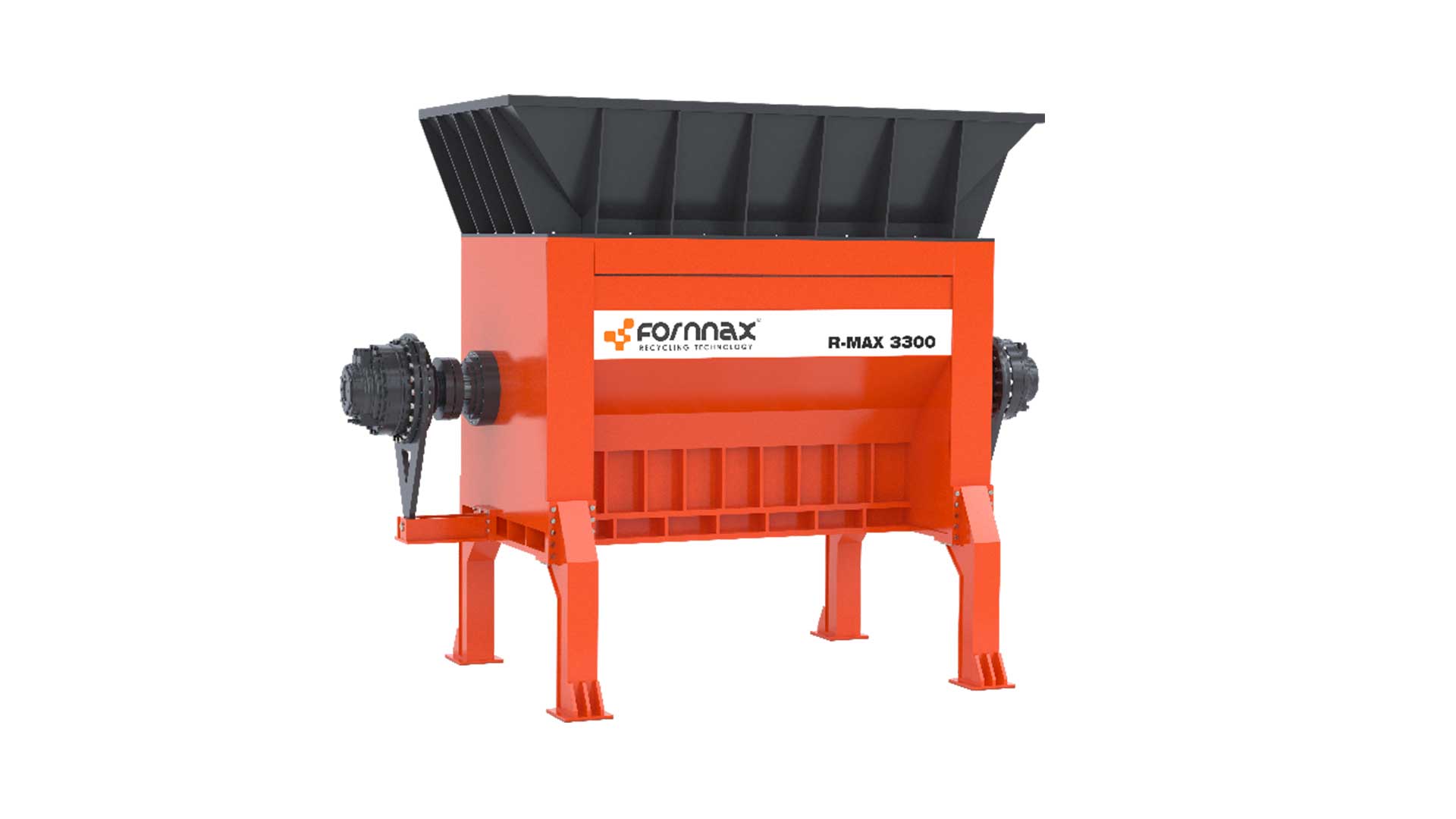

The Fornnax R-MAX3300 is a high-capacity single-shaft machine that accepts various materials for downsizing into consistently sized particles. This heavy-duty machine can process RDF, wood, aluminium, and other materials. The internal screen has a hole size of up to 50 mm and a drive of 430 HP, providing sufficient power and torque to process the most difficult materials. The technology becomes very reliable and efficient with the design of replaceable wear plates and low-cost blades.
MUNICIPAL SOLID WASTE
INDUSTRIAL AND COMMERCIAL WASTE
BULKY WASTE
PAPER & CARDBOARD
WOOD
Send download link to:
The hydraulic hopper and screen opening ensure easy maintenance.
Advanced Bearing Housing – isolates bearings from cutting chamber contamination
Fourfold use and multiple time re-grind blades and reversible screens – for low-cost operations
Completely hard-faced rotor and replaceable wear plates – to increase the durability of the cutting unit.
Highly sensitive Slip-clutch- to protect the machine against unsuitable materials.
Specific Stop Feature: Control feeding according to load percentages to maximise efficiency and protect against damage.
A hydraulic pusher-ram device ensures continuous feeding of bulky and light input materials, allowing the cutting blade to grab the materials better.
Rapid screen change system to control the output size and wide range of shredding capabilities to handle various materials
Inlet and Outlet hopper -highly customized.
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power Range
|
430-540 HP / 320-400 kW
|
|
Number of Motors
|
1 / 2
|
|
Drive Specification
|
Electric / Hydraulic
|
|
Voltage
|
As Per Customer's Requirement
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber (LxW)
|
L 3000 mm x W 1000 mm
|
|
Rotor Diameter
|
1000 mm
|
|
Rotor Length
|
3000 mm
|
|
Hopper Opening (LxW)
|
L 4200 mm x W1400 mm
|
|
Hopper Height
|
800 mm
|
|
Discharge Height
|
1200 mm
|
|
Infeed Height
|
3300 mm
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length
|
5000 mm
|
|
Equipment Width
|
2500 mm
|
|
Equipment Height
|
4000 mm
|
|
Equipment Height (Approx.)
|
40000 kg
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Recommended Input Size
|
Up to 500 mm
|
|
Output size
|
30 mm - 80 mm
|
|
Capacity
|
Up to 25 Ton/Hour
|
