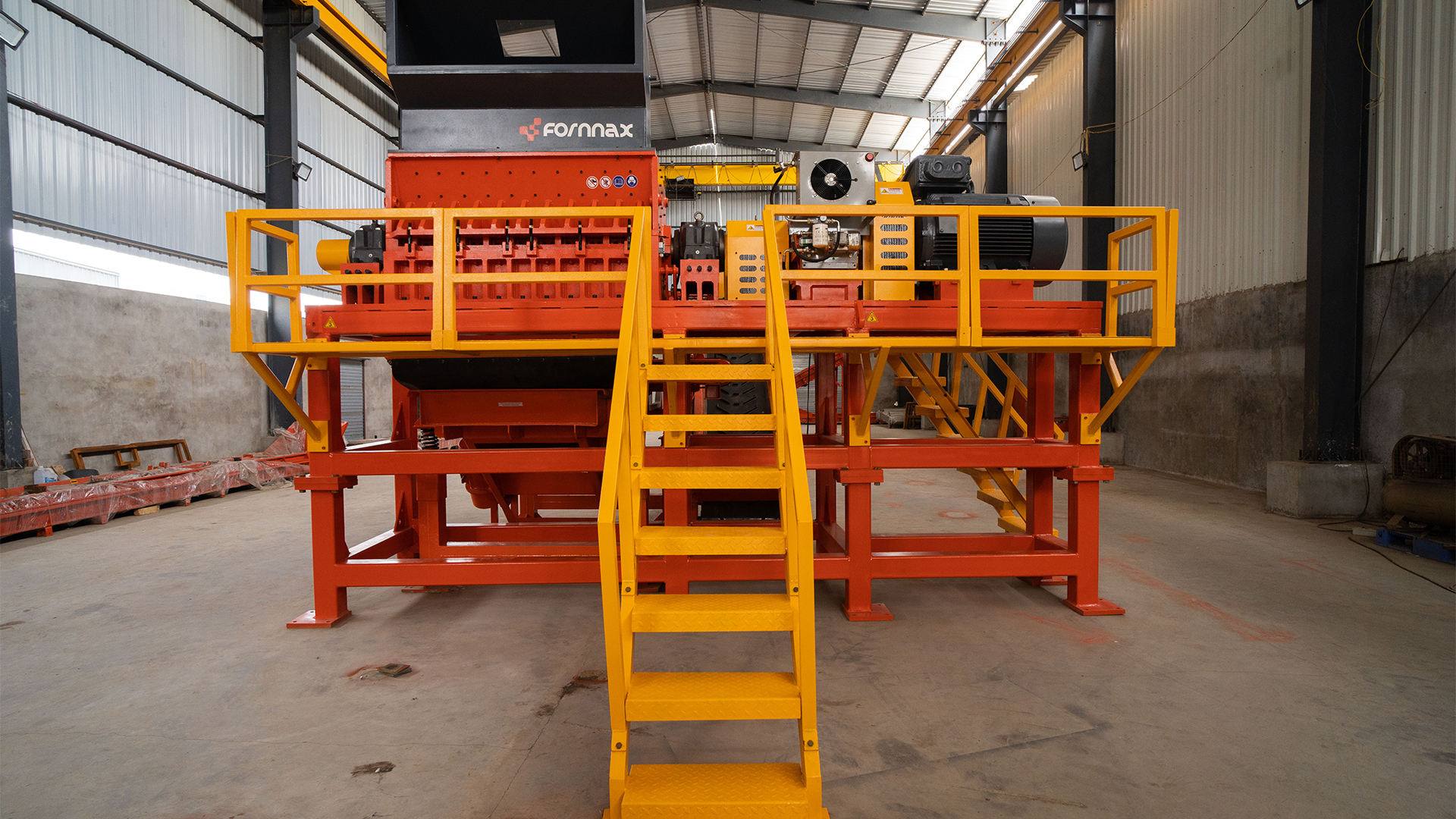

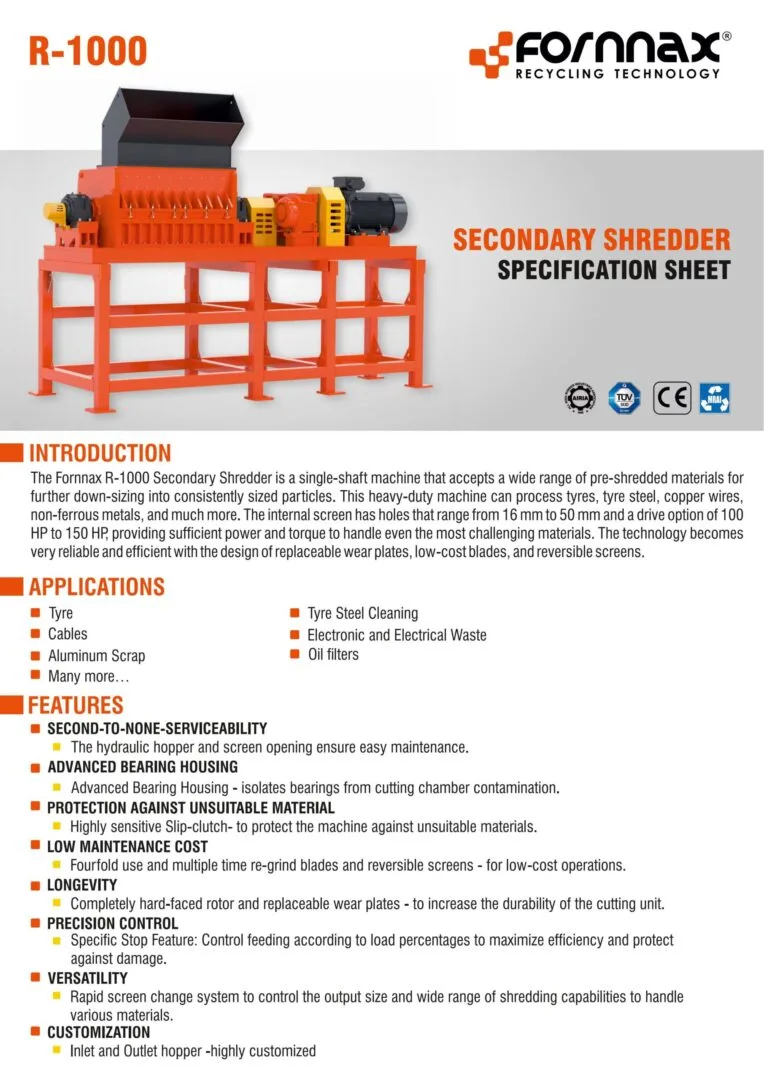

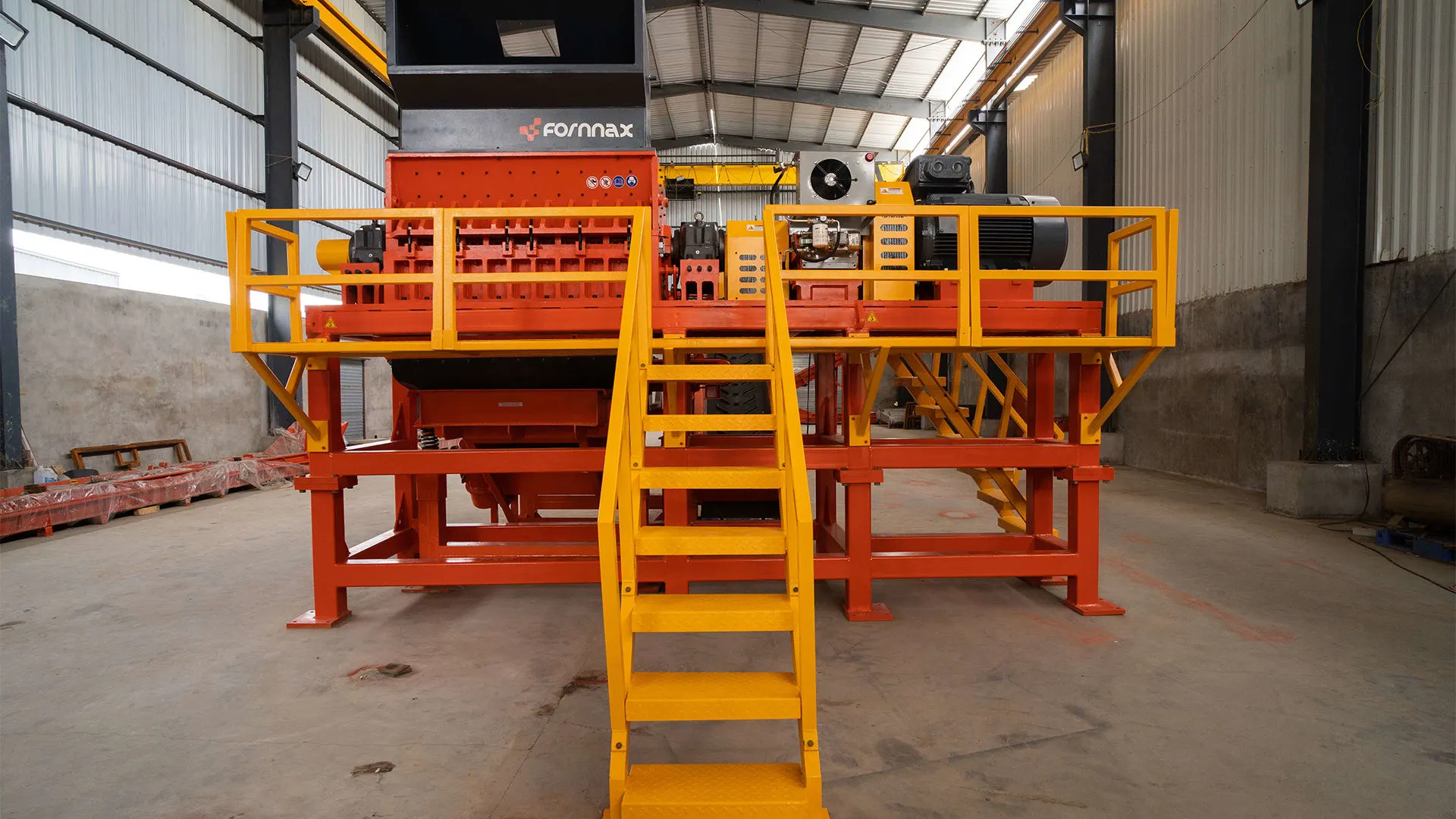

The Fornnax R-1000 Secondary Shredder is a single-shaft machine that accepts a wide range of pre-shredded materials for further down-sizing into consistently sized particles. This heavy-duty machine can process tyres, tyre steel, copper wires, non-ferrous metals, and much more. The internal screen has holes that range from 16 mm to 50 mm and a drive option of 100 HP to 150 HP, providing sufficient power and torque to handle even the most challenging materials. The technology becomes very reliable and efficient with the design of replaceable wear plates, low-cost blades, and reversible screens.
PASSENGER & TRUCK TYRES
STEEL CORD CLEANING
CABLES
ELECTRONIC & ELECTRICAL WASTE
ALUMINIUM SCRAP
OIL FILTERS
Send download link to:
The hydraulic hopper and screen opening ensure easy maintenance.
Advanced Bearing Housing – isolates bearings from cutting chamber contamination
Highly sensitive Slip-clutch- to protect the machine against unsuitable materials.
Fourfold use and multiple time re-grind blades and reversible screens – for low-cost operations
Completely hard-faced rotor and replaceable wear plates – to increase the durability of the cutting unit.
Specific Stop Feature: Control feeding according to load percentages to maximise efficiency and protect against damage.
Rapid screen change system to control the output size and wide range of shredding capabilities to handle various materials
Inlet and Outlet hopper -highly customized
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power
|
150 HP / 110 KW
|
|
Number of Motors
|
1
|
|
Drive Specification
|
Electric
|
|
Voltage
|
As Per Customer's Requirement
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber
|
L 1250 mm x W 540 mm
|
|
Rotor Diameter
|
500 mm
|
|
Rotor Length
|
1250 mm
|
|
No. of Rotating Blades
|
50
|
|
No. of Static Blades
|
10
|
|
Hopper Opening (OG x OF)
|
L 1250 mm x W 450 mm
|
|
Hopper Height
|
900 mm
|
|
Discharge Height
|
1730 mm
|
|
Infeed Height
|
3250 mm
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length
|
4600 mm
|
|
Equipment Width
|
1600 mm
|
|
Equipment Height
|
3400 mm
|
|
Equipment Height (Approx.)
|
10000 kg
|
