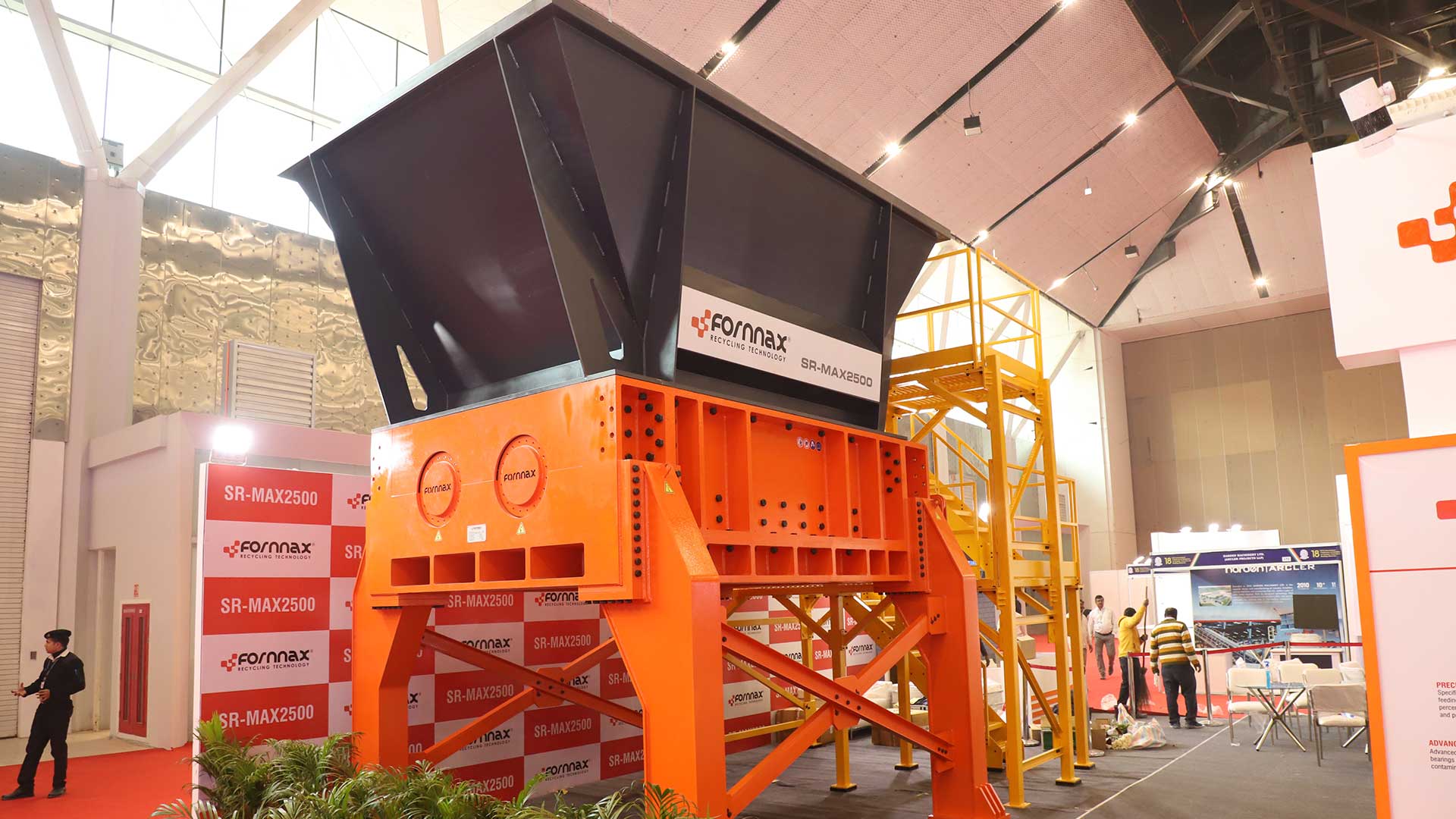

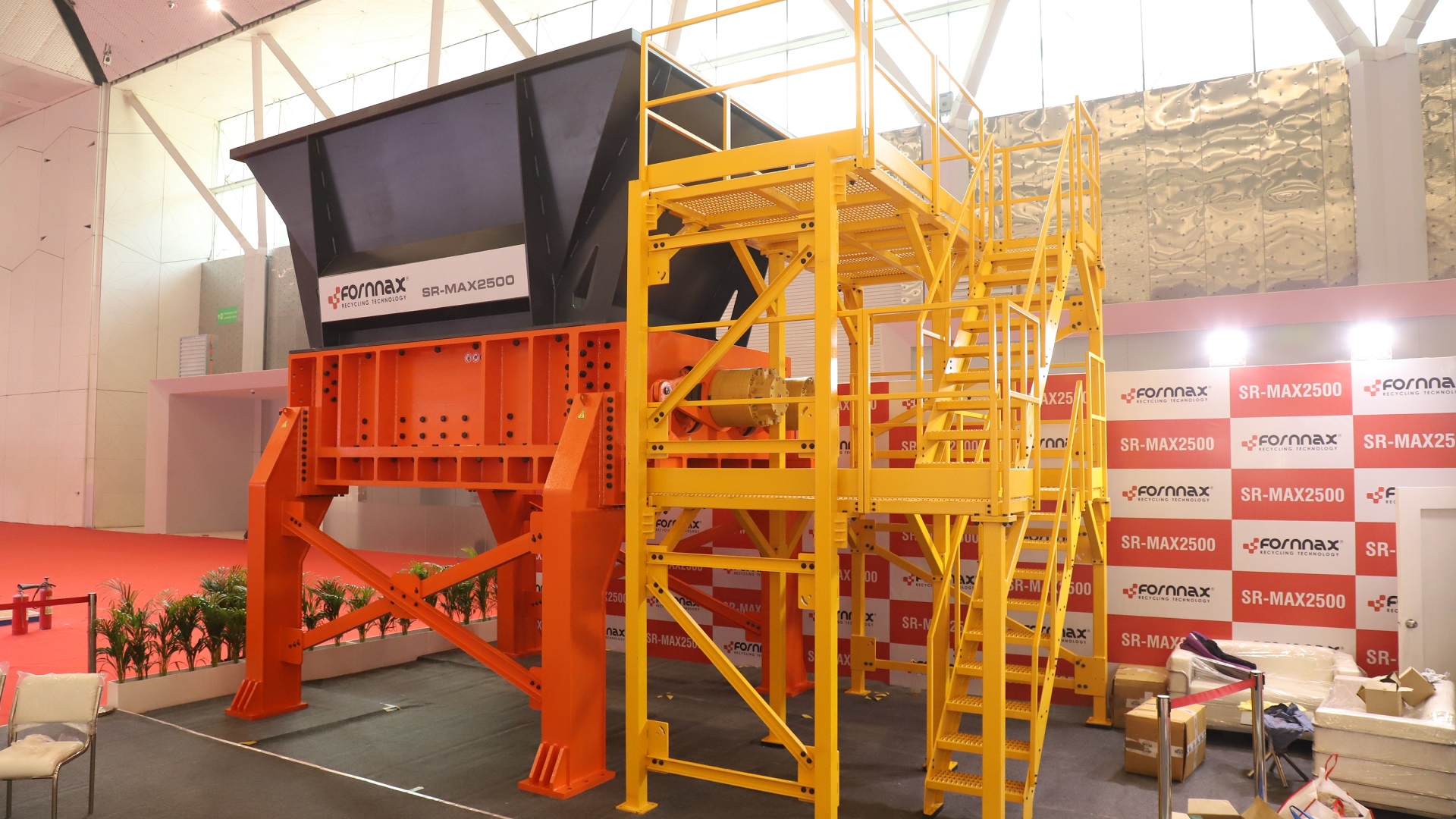

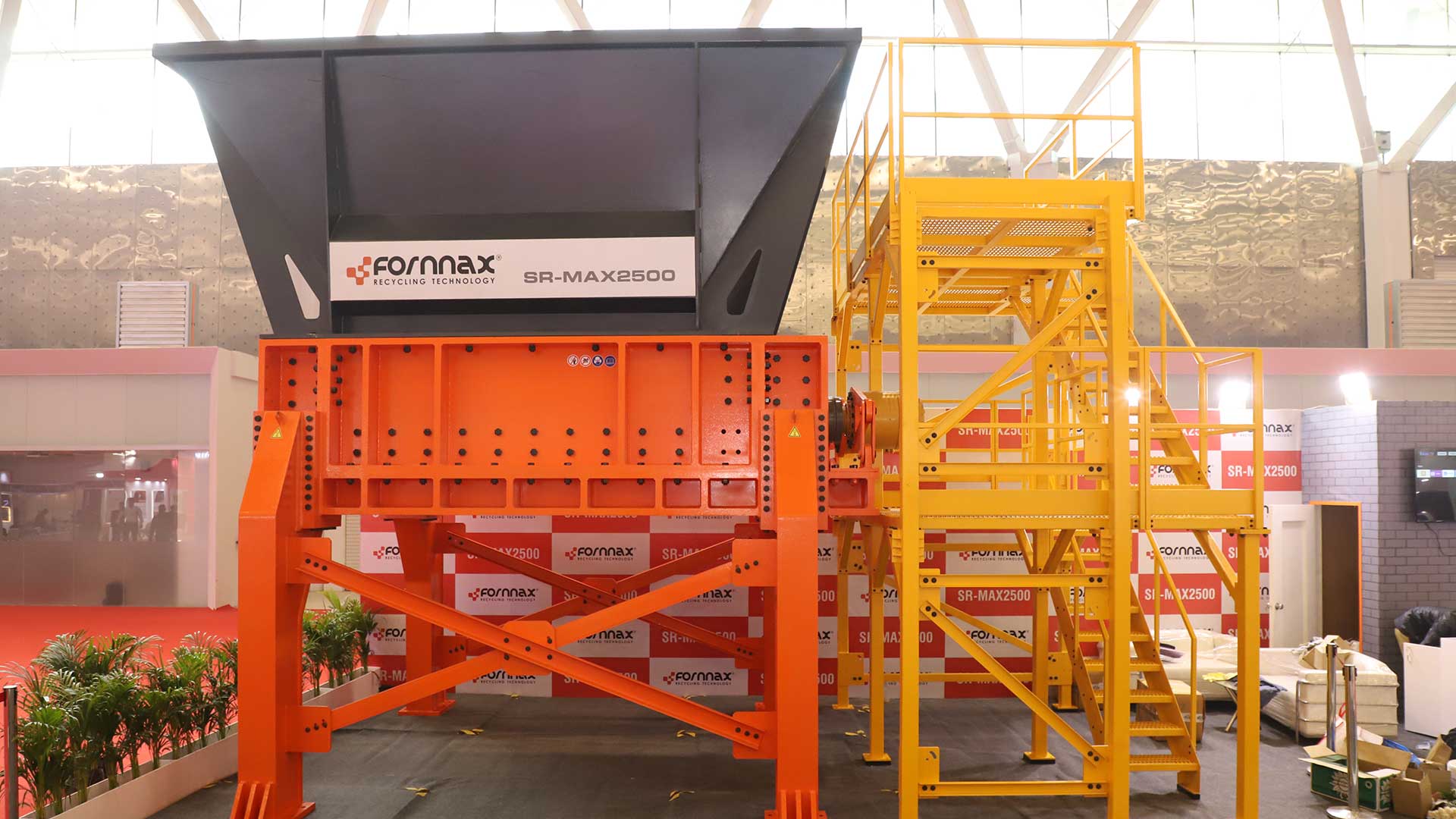

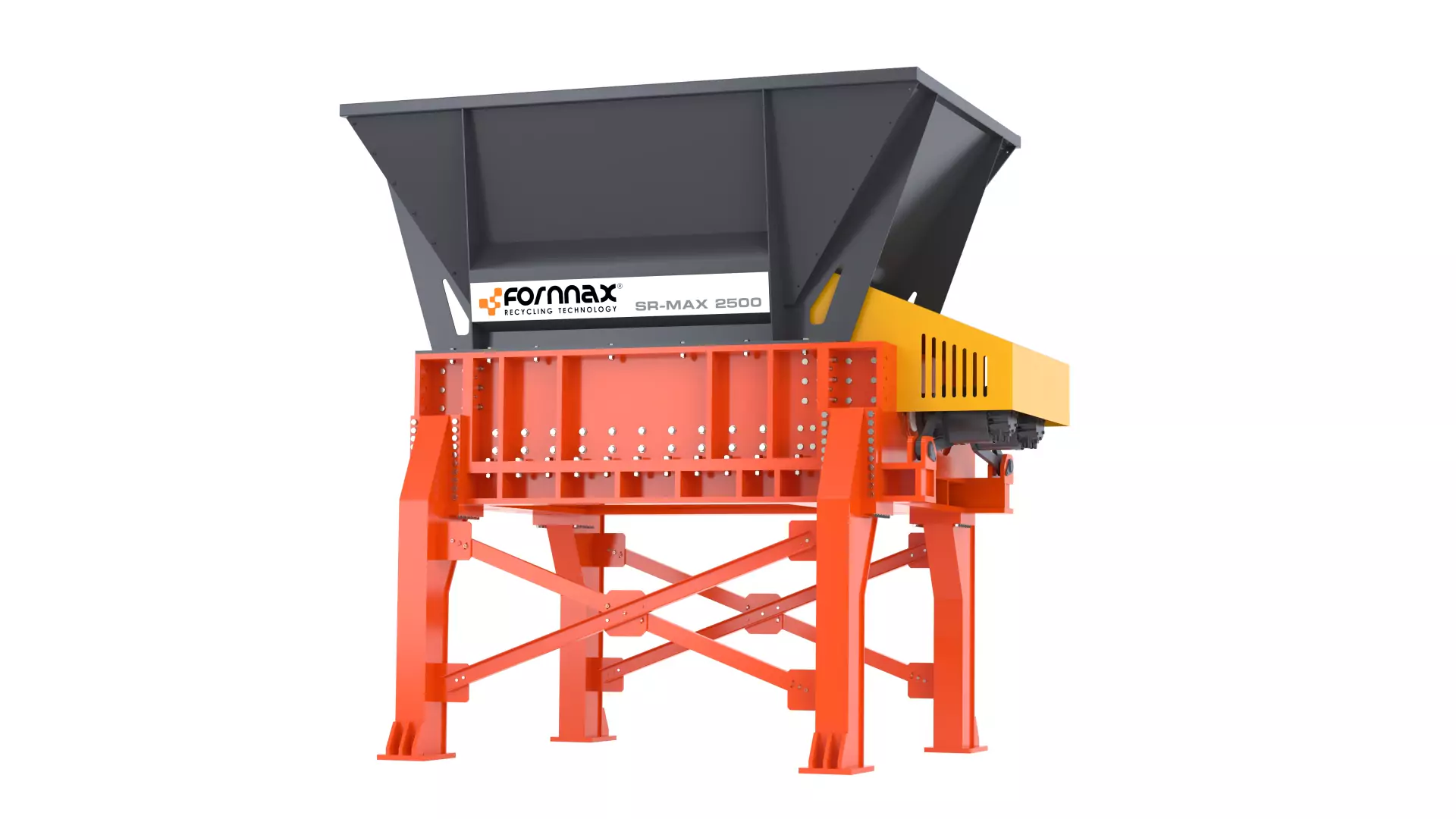

SR-Max Series Primary Shredders SR-MAX2500

The Fornnax SR-MAX2500 Primary Shredder is a high-capacity machine with modern engineering and technology. Each shaft is driven by its hydraulic motor, which generates high torque at low speed and provides plenty of power to the individual shaft. The Fornnax SR-MAX2500 Shredder is a tailor-made and multi-purpose machine for the volume reduction of the most rigid materials. It combines ripping and shearing technologies to shred, tear, drill, cut, split, crush, break, and reduce the size of materials. Key features include a unique cutter design, a replaceable cutting table and a replaceable shaft design.

APPLICATIONS

DOWNLOADS

SR-MAX2500 Specification Sheet

File size 1.22 Mb

DOWNLOAD NOW

Send download link to:

FEATURES

LOW MAINTENANCE COST

Specially designed knives with welding hard-face and re-grind multiple times for low-cost operations.

EASY MAINTENANCE

Rapid shaft and cutting table change system ensures easy maintenance

ADVANCED BEARING HOUSING

Advanced bearing housing -isolates bearings from cutting chamber contamination

LONGEVITY

Replaceable wear parts -to increase the durability of the cutting unit

PRECISION CONTROL

Specific Stop-Auto-Reverse feature to control feeding according to load percentages for high efficiency and protect against damage

VERSATILITY

The output size can be controlled by using different knives thicknesses, and there is a wide range of shredding capabilities to handle a various materials

CUSTOMIZATION

Highly customized inlet and outlet hopper

Specifications

DRIVE & TRANSMISSION SYSTEM

TABLE HEADER 1	TABLE HEADER 2
Power Range	350 HP- 540 HP / 264 - 400 kW
Number of Motors	2
Drive Specification	Hydraulic
Voltage	As Per Customer's Requirement

CUTTING SYSTEM

TABLE HEADER 1	TABLE HEADER 2
Cutting Chamber (LxW)	2500 mm X 2000 mm
Cutting Diameter	900 mm
Cutting Length	2500 mm
No. of Knives	12 / 16 / 18 / 20
Knives Thickness	80 mm
Hopper Opening (LxW)	4800 mm X 3100 mm
Hopper Height	2000 mm
Discharge Height	1980 mm
Infeed Height	5185 mm

OVERALL DIMENSIONS & WEIGHT

TABLE HEADER 1	TABLE HEADER 2
Equipment Length	5370 mm
Equipment Width	3780 mm
Equipment Height	5185 mm
Equipment Height (Approx.)	35000 kg

OUTPUT SIZE AND CAPACITY

TABLE HEADER 1	TABLE HEADER 2
Output Size	<300 mm	< 50 - 150 mm
Household Waste	80 Ton/Hour	40 Ton/Hour
Demolition Waste	60 Ton/Hour	30 Ton/Hour
Bulky Waste	50 Ton/Hour	25 Ton/Hour
Industrial Waste	40 Ton/Hour	20 Ton/Hour
