SR-Max Series Primary Shredders SR-MAX3500

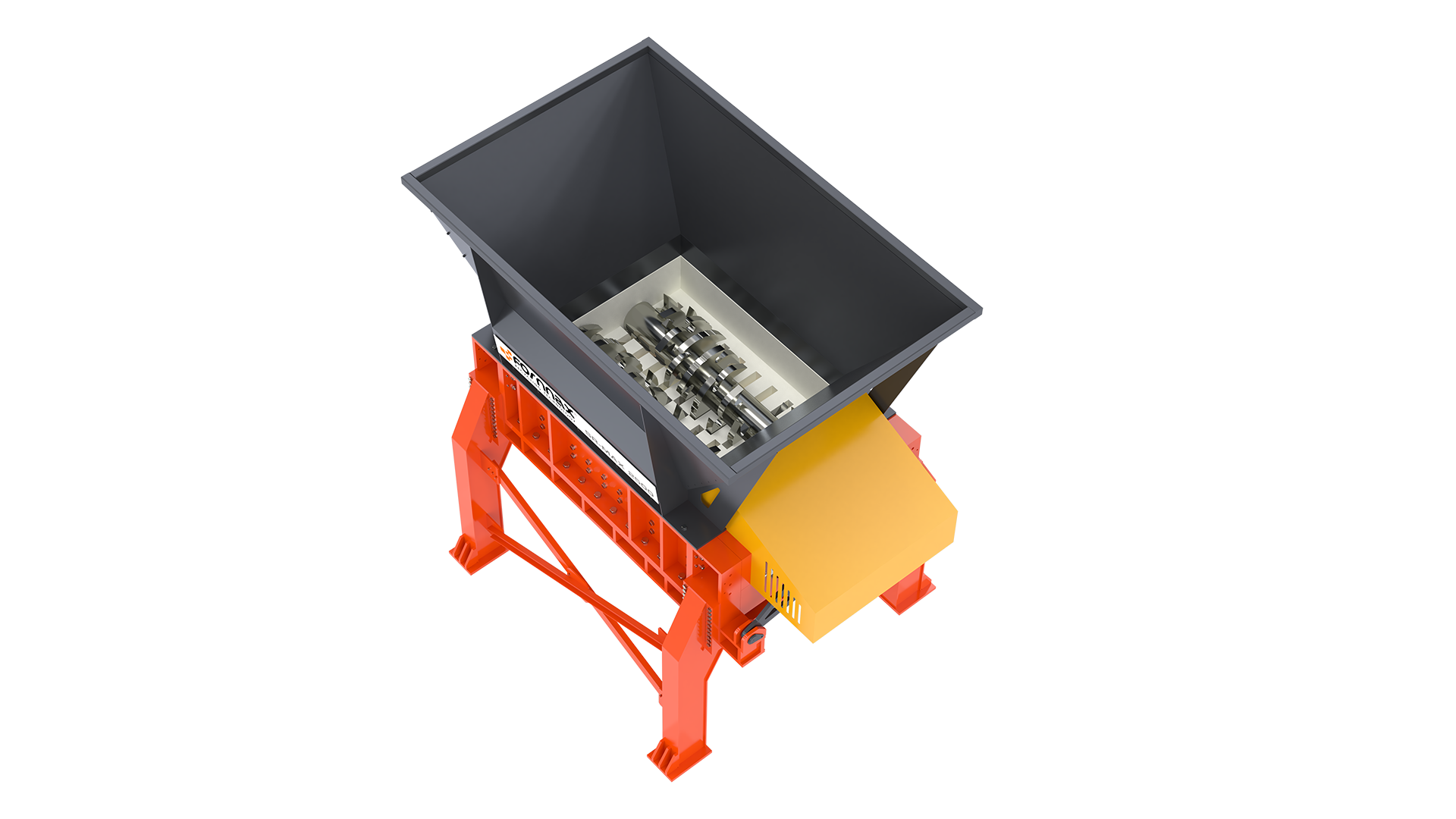

The Fornnax SR-MAX3500 Primary Shredder is a high-capacity machine with modern engineering and technology. Each shaft is driven by its hydraulic motor, which generates high torque at low speed and provides plenty of power to the individual shaft. The Fornnax SR-MAX3500 Shredder is a tailor-made and multi-purpose machine for the volume reduction of the most rigid materials. It combines ripping and shearing technologies to shred, tear, drill, cut, split, crush, break, and reduce the size of materials. Key features include a unique cutter design, a replaceable cutting table and a replaceable shaft design.
APPLICATIONS
MUNICIPAL WASTE
INDUSTRIAL & COMMERCIAL WASTE
CONSTRUCTION & DEMOLITION DEBRIS
BULKY WASTE
PAPER/CARDBOARD
BALED ALUMINIUM
PLASTIC PROCESSING AND BAG OPENING
DISASTER CLEAN-UPS
DOWNLOADS
SR-MAX3500 Specification Sheet
Send download link to:
FEATURES
LOW MAINTENANCE COST
Specially designed knives with welding hard-face and re-grind multiple times for low-cost operations
EASY MAINTENANCE
Rapid shaft and cutting table change system ensures easy maintenance
ADVANCED BEARING HOUSING
Advanced bearing housing – isolates bearings from cutting chamber contamination
LONGEVITY
Replaceable wear parts – to increase the durability of the cutting unit.
PRECISION CONTROL
Specific Stop-Auto-Reverse feature to control feeding according to load percentages for high efficiency and protection against damage
VERSATILITY
The output size can be controlled by using different knives thicknesses, and there is a wide range of shredding capabilities to handle various materials
CUSTOMIZATION
Inlet and outlet hopper- highly customized
Specifications
DRIVE & TRANSMISSION SYSTEM
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power Range
|
540 – 670 HP / 400 – 500 kW
|
|
Number of Motors
|
2
|
|
Drive Specification
|
Hydraulic
|
|
Voltage
|
As Per Customer's Requirement
|
CUTTING SYSTEM
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber (LxW)
|
3500 mm X 2400 mm
|
|
Cutting Length
|
3500 mm
|
|
Knives Thickness
|
80 mm
|
|
Hopper Opening (LxW)
|
4800 mm X 3100 mm
|
|
Infeed Height
|
5185 mm
|
OVERALL DIMENSIONS & WEIGHT
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length (A)
|
6150 mm
|
|
Equipment Width (B)
|
3780 mm
|
|
Equipment Height (C)
|
5185 mm
|
|
Equipment Weight (Approx.)
|
43000 kg
|
OUTPUT SIZE AND CAPACITY
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|
|---|---|---|
|
Output Size
|
<300 mm
|
< 50 - 150 mm
|
|
Household Waste
|
180 Ton/Hour
|
90 Ton/Hour
|
|
Demolition Waste
|
90 Ton/Hour
|
45 Ton/Hour
|
|
Bulky Waste
|
70 Ton/Hour
|
35 Ton/Hour
|
|
Industrial Waste
|
60 Ton/Hour
|
30 Ton/Hour
|
