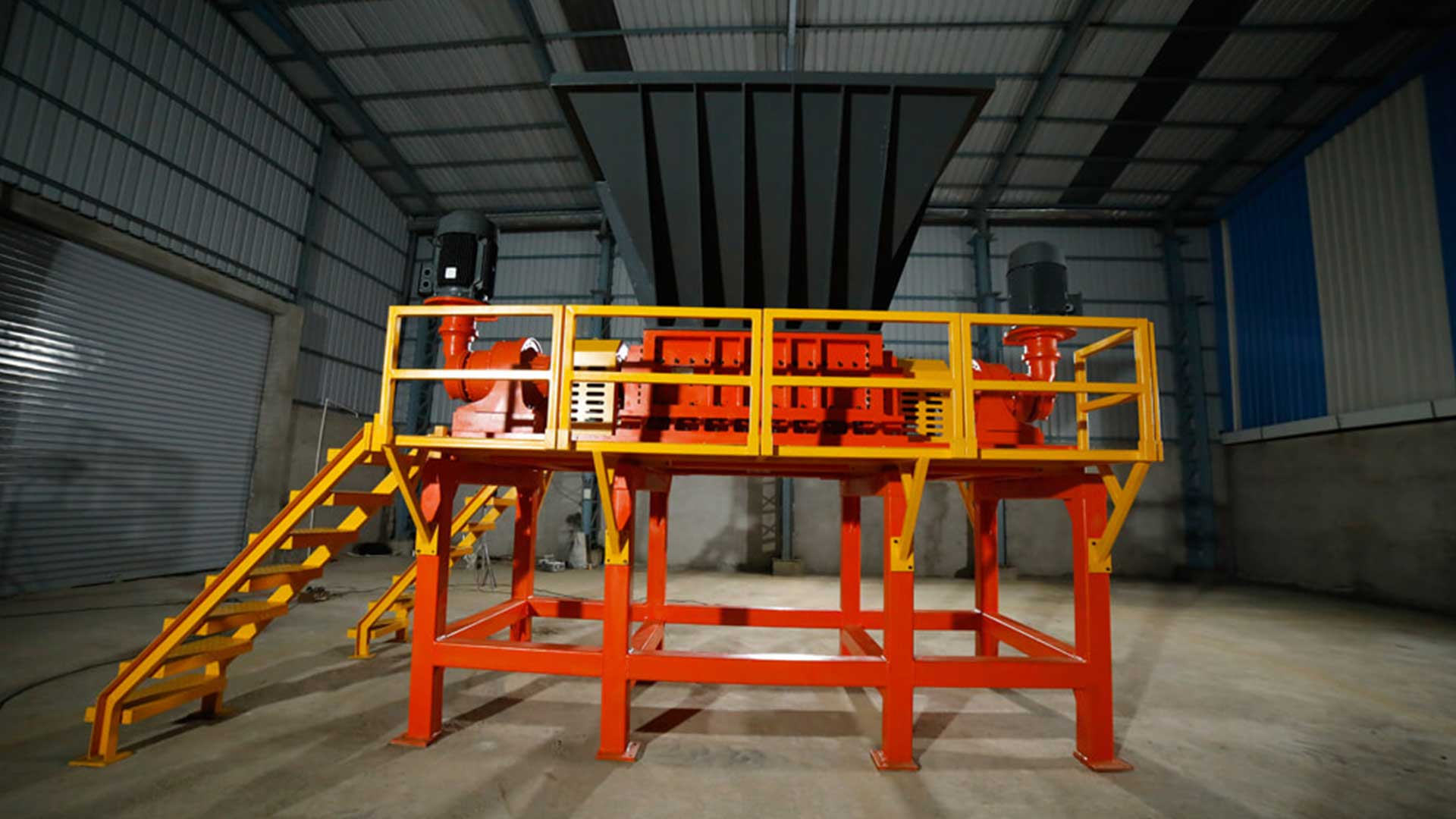

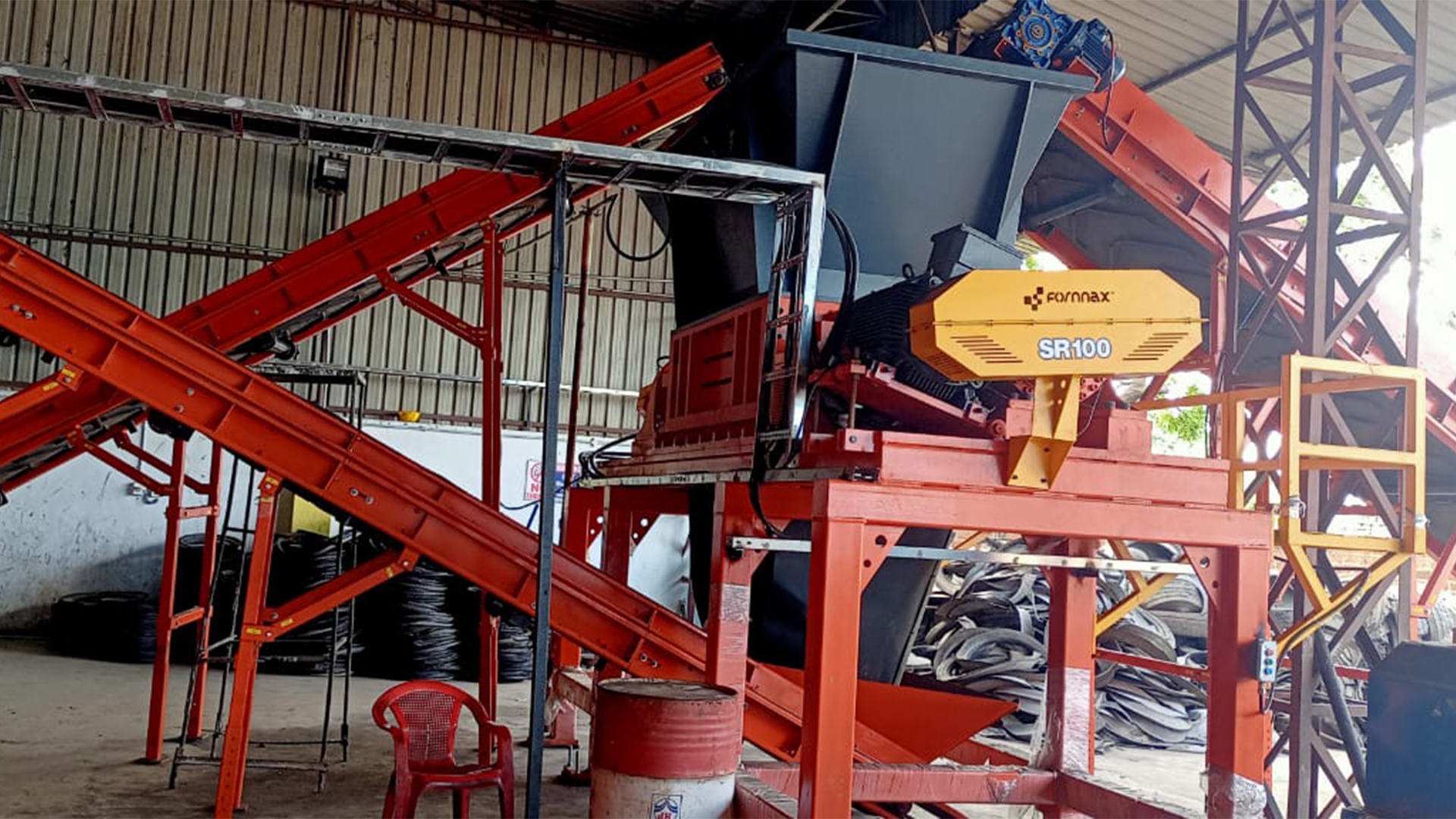

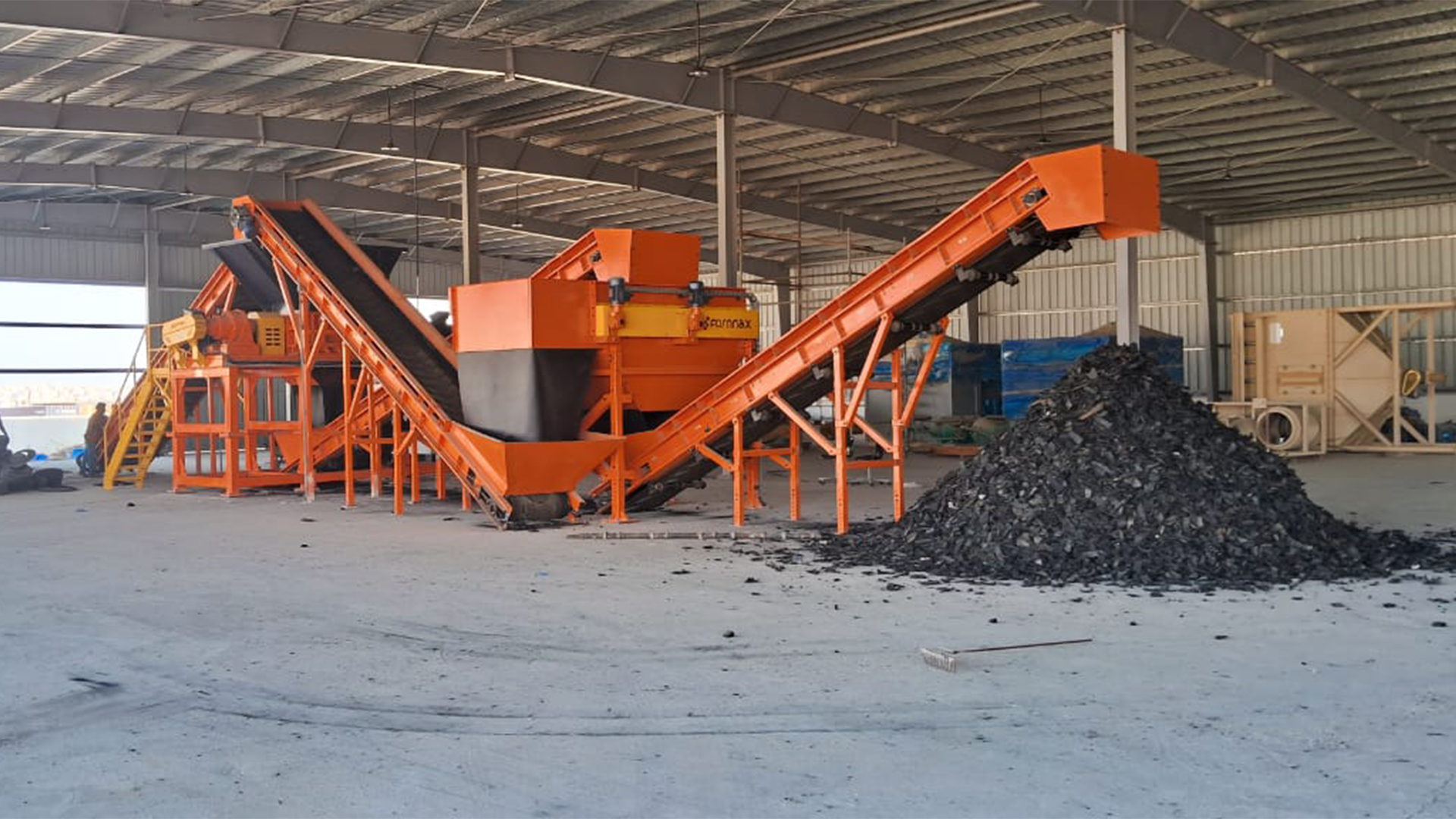

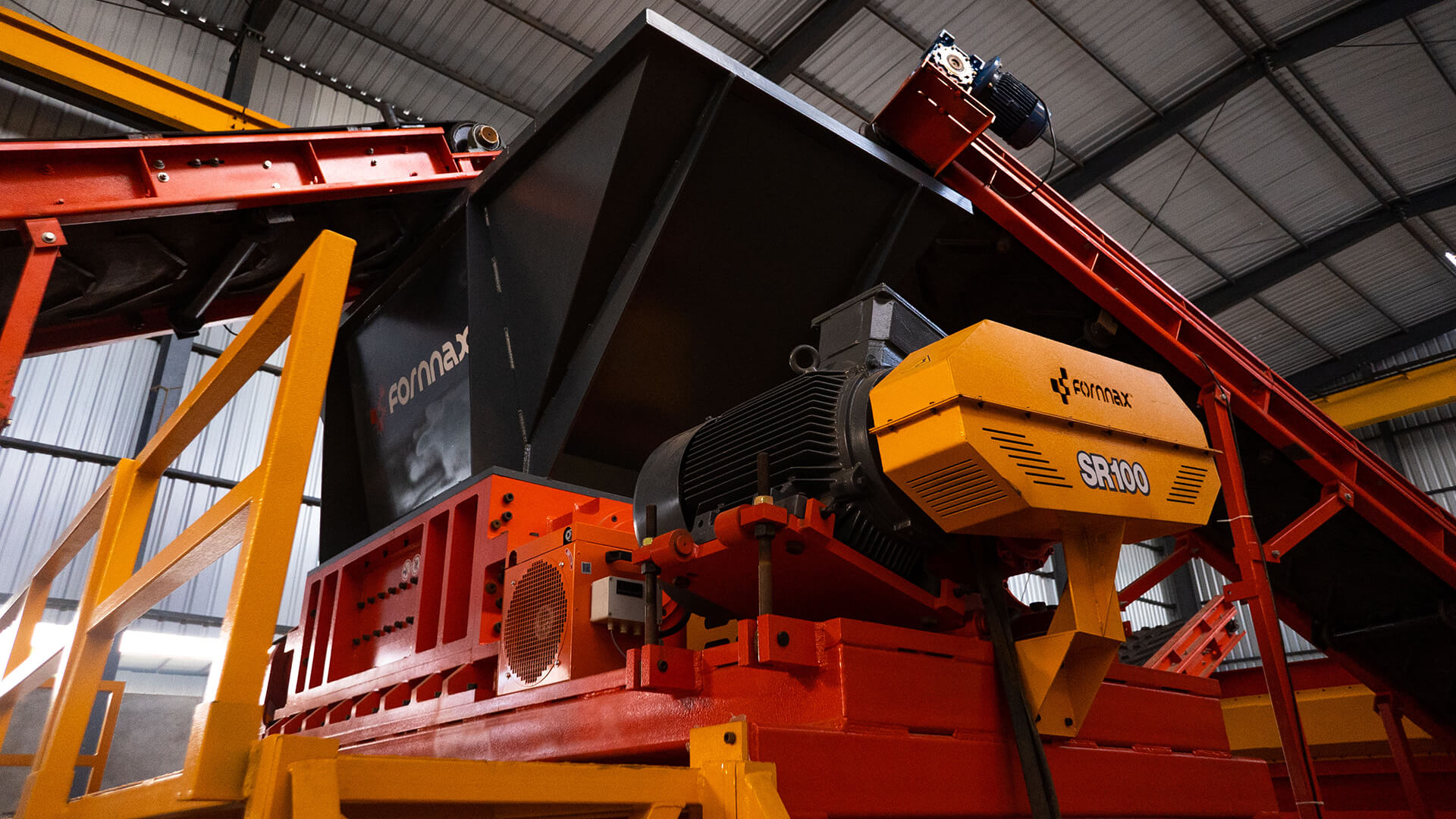

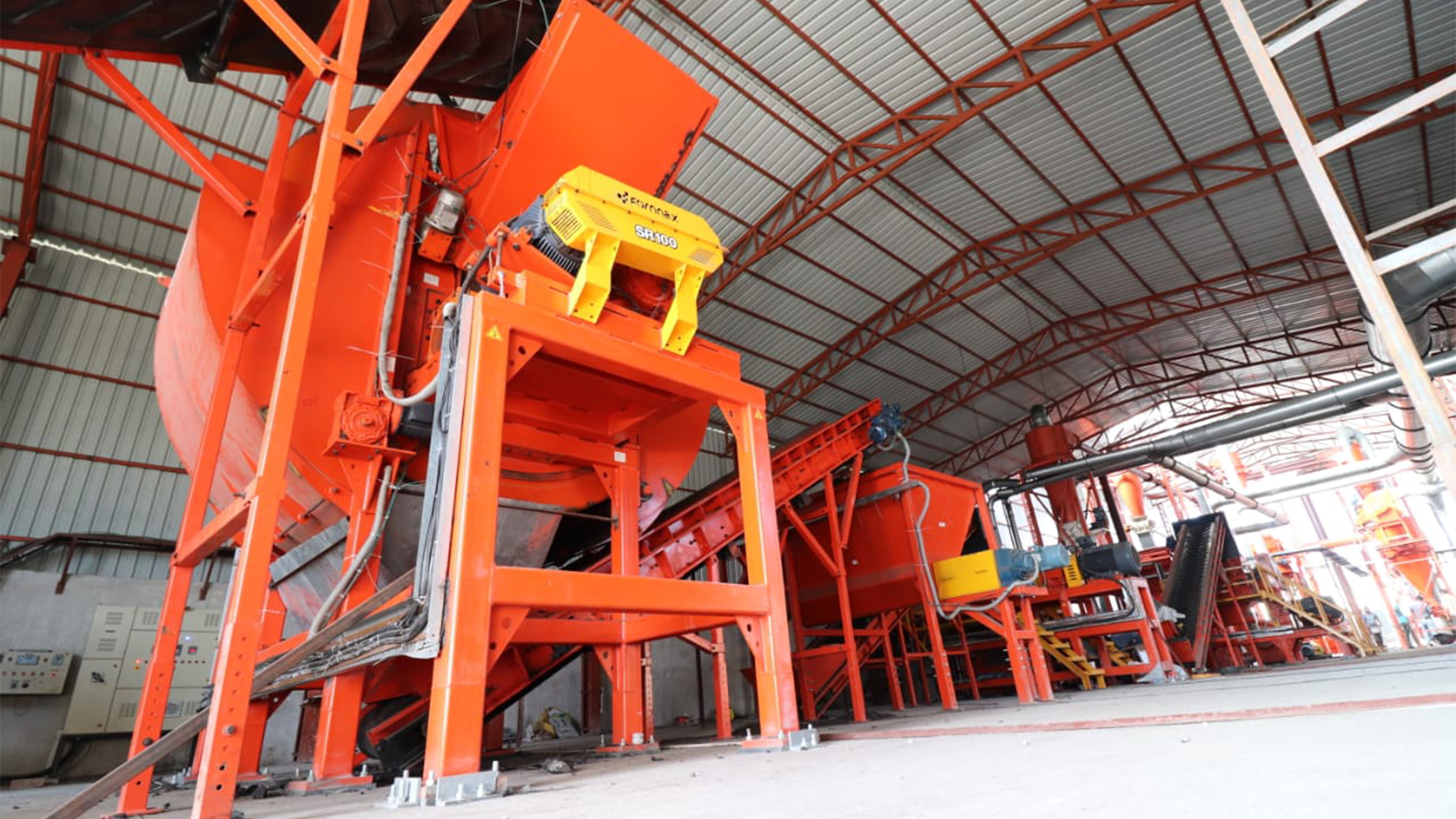

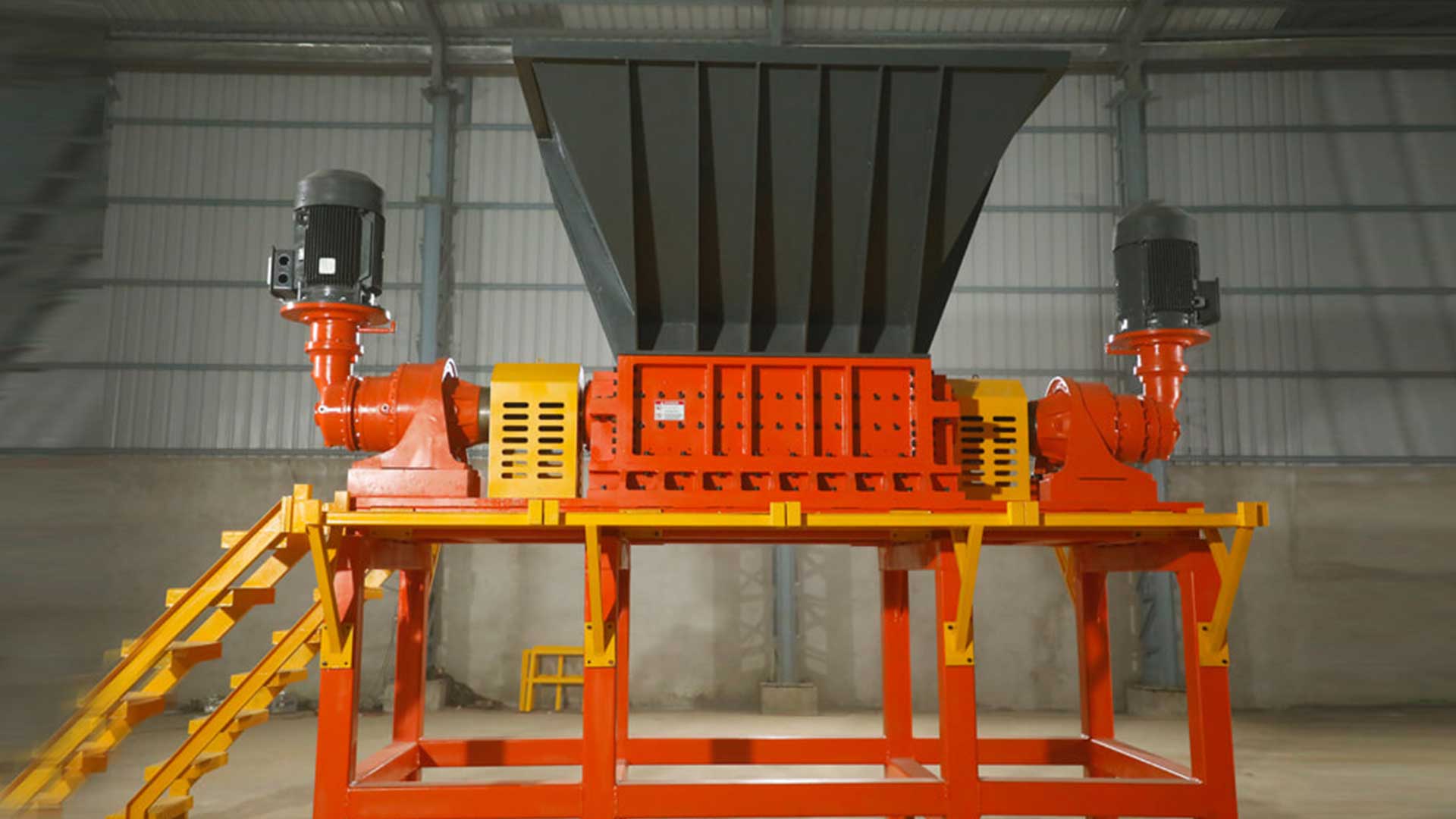

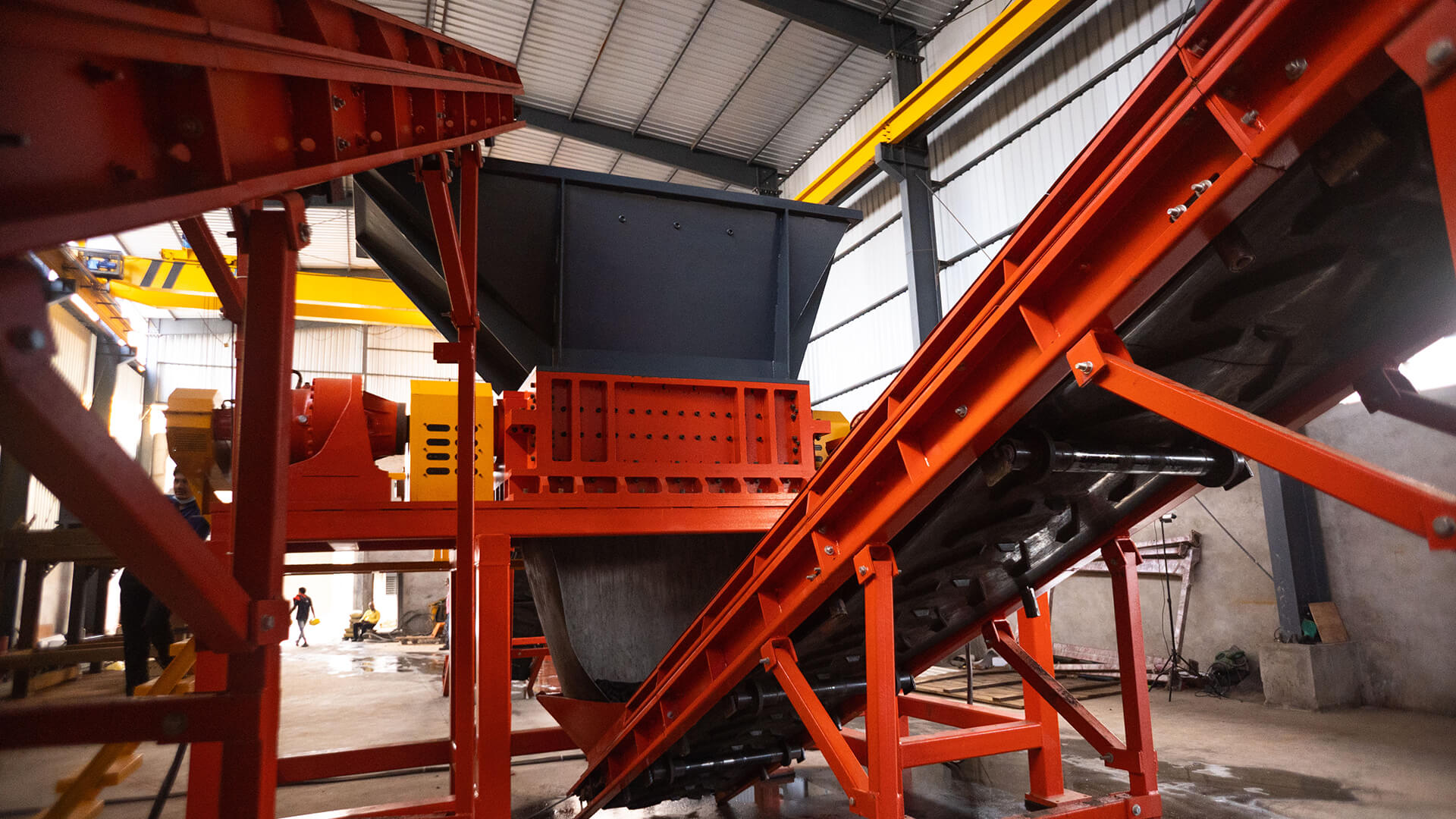

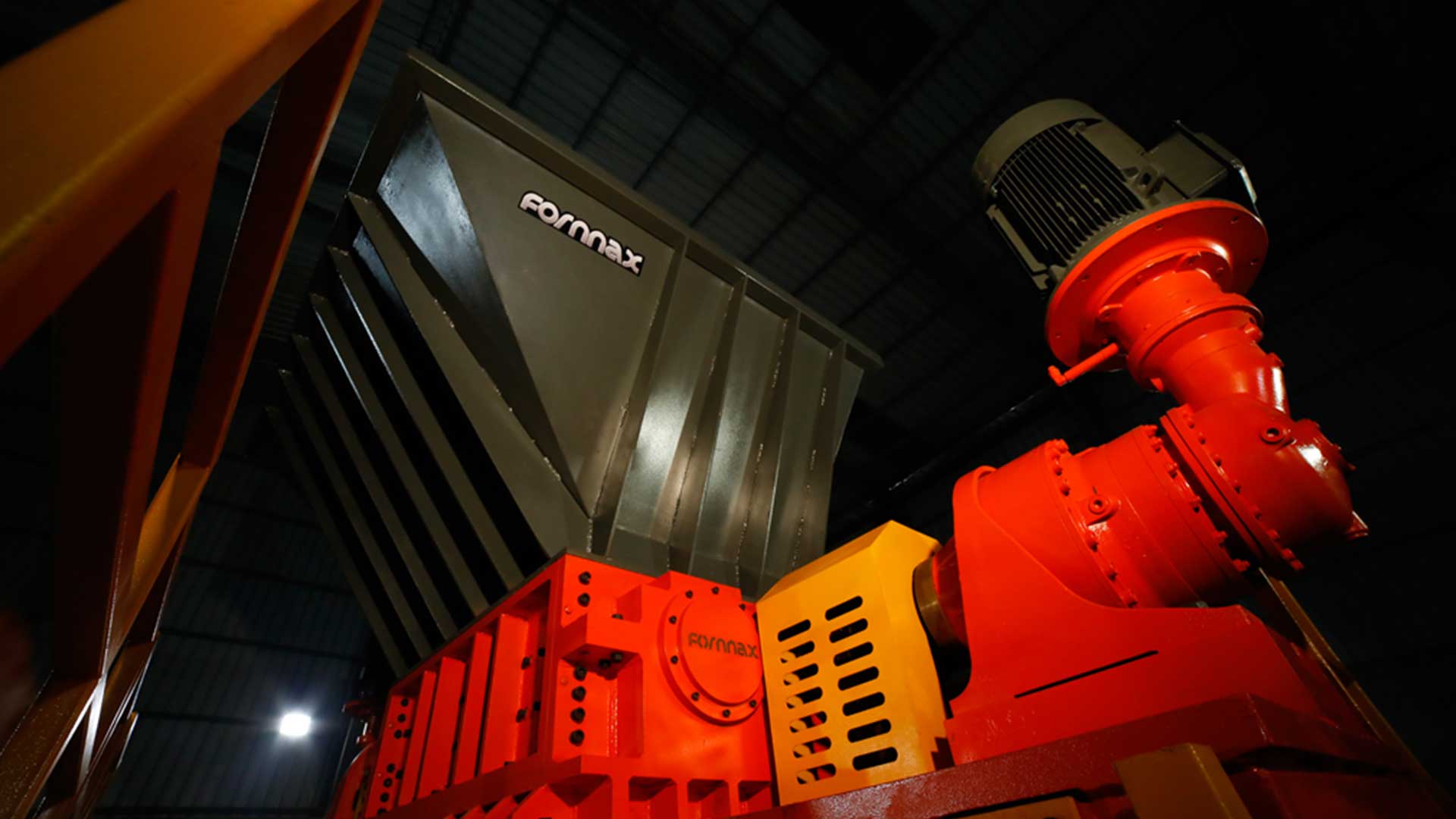

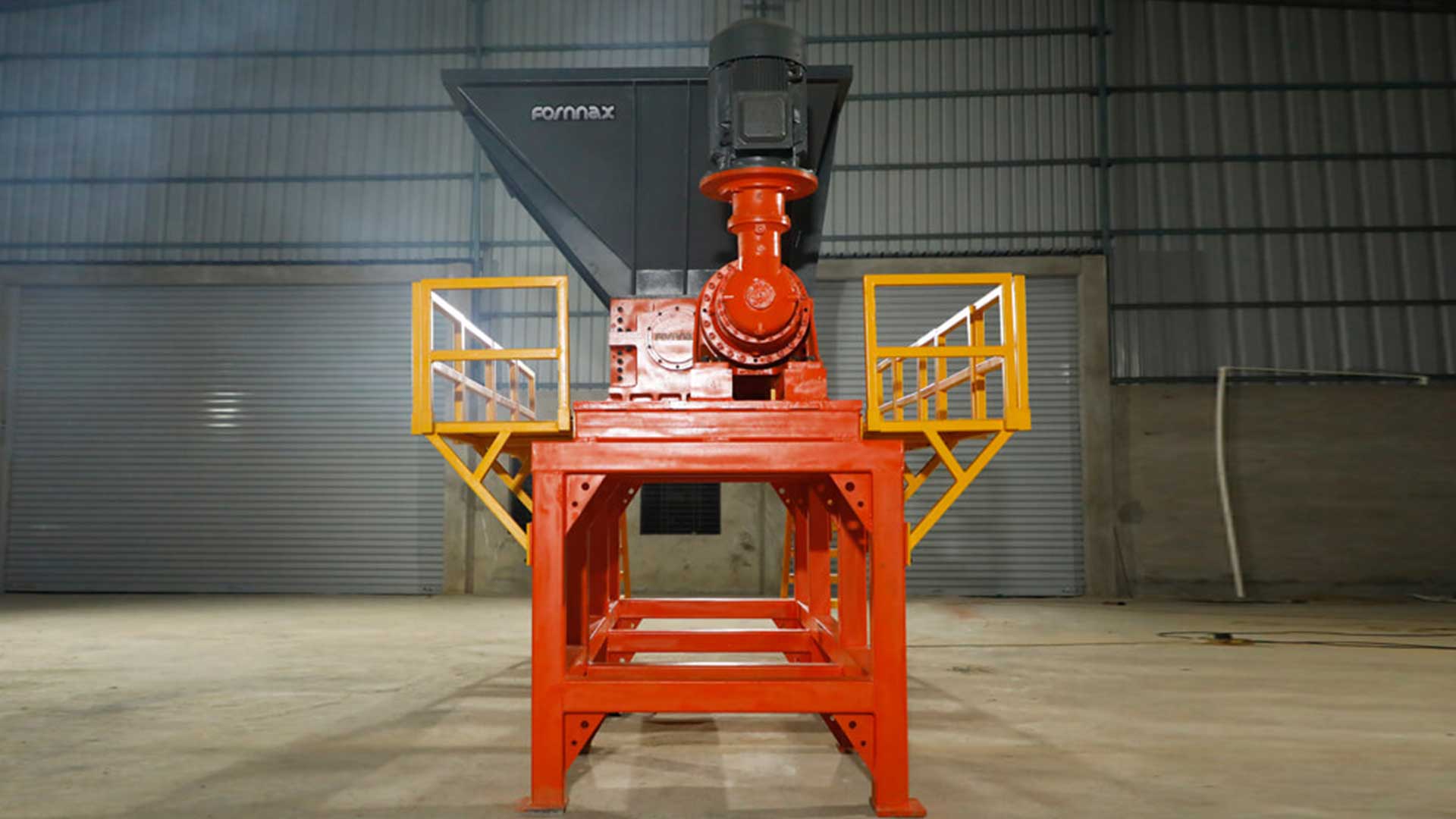

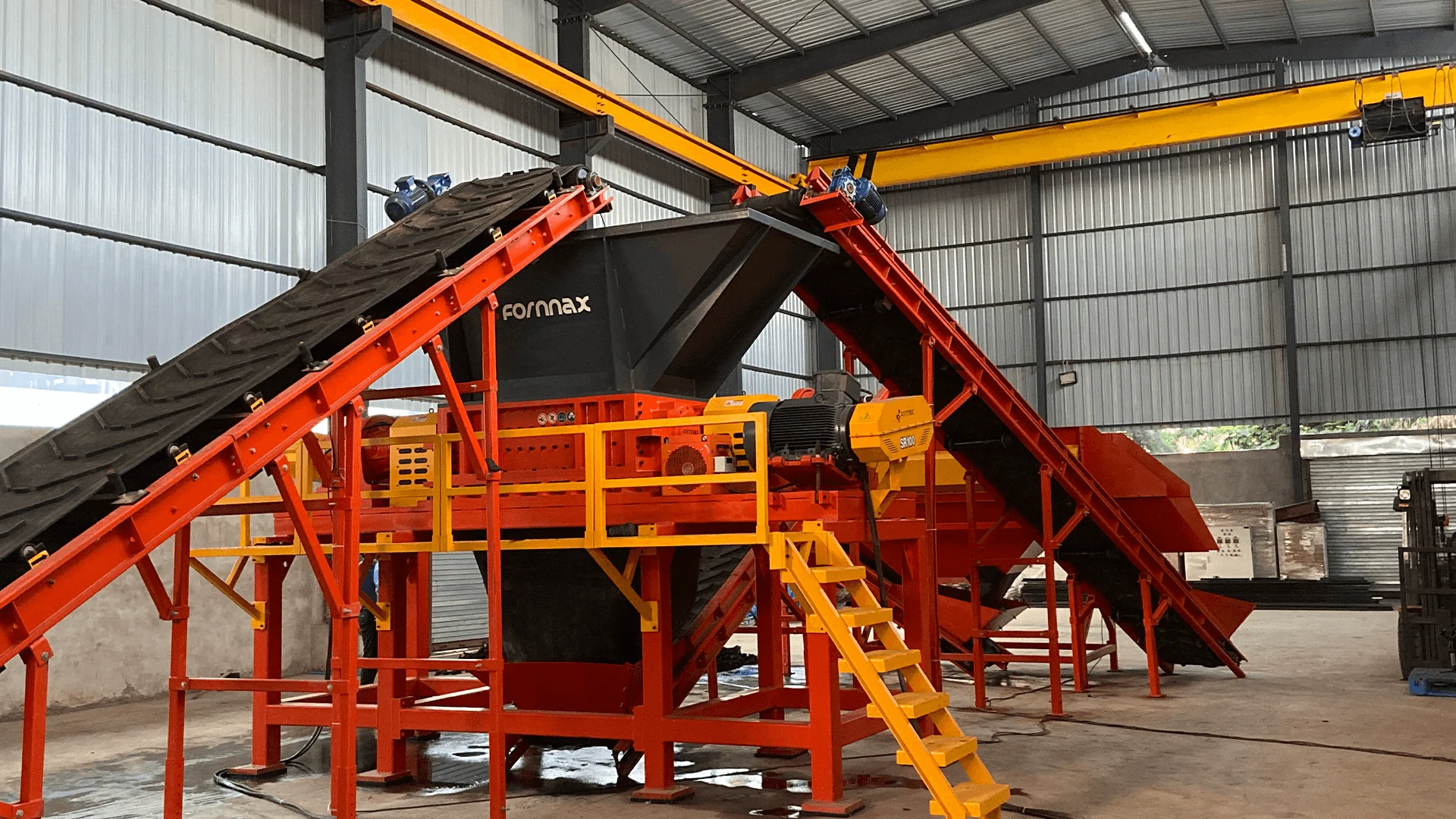

The Fornnax Dual-Shaft SR-100 / SR-100HD Primary Shredder has an individual shaft driven by its motor, which generates high torque at low speed and provides plenty of power to the individual shaft. The Fornnax Two Shaft SR-100 / SR-100HD Shredder is designed for multiple purposes, including size reduction of bulky waste, data destruction, and primary shredding, where output size variations are acceptable. The output size depends on the thickness of the knives and consists of strips of sizes varying from 30 mm to 50 mm.
PASSENGER & TRUCK TYRES
MUNICIPLE SOLID WASTE
MIXED & BULKY WASTE
ORGANIC WASTE
ELECTRONIC WASTE
METAL DRUMS
METALS
CONSTRUCTION DEMOLITION WASTE
WOODS/PALLETS
PLASTIC
PAPER / CARDBOARD
Send download link to:
Specially designed knives with welding hard-face and re-grind multiple times for low-cost operations.
Rapid knives change system ensures easy maintenance
Advanced bearing housing -isolates bearings from cutting chamber contamination
Replaceable wear parts -to increase the durability of the cutting unit
Specific stop auto-reverse feature -protects against over-feeding and damage by unsuitable materials
The output size can be controlled by using different knives thicknesses, and there is a wide range of shredding capabilities to handle a variety of materials
Advanced knives tighten system – to reduce the gap between knives and increase the lifespan of knives
Inlet and outlet hopper- highly customized
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power Range
|
100-200 HP / 75-150 KW
|
|
Number of Motors
|
2
|
|
Drive Specification
|
Electric
|
|
Voltage
|
As Per Customer's Requirement
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber
|
L 1400 mm X W 940 mm
|
|
Knives Thickness
|
50 mm
|
|
Knives Diameter
|
530 mm
|
|
Hopper Opening (F x G)
|
L 2930 mm X W 1430 mm
|
|
Hopper Height (E)
|
1175 mm
|
|
Discharge Height (D)
|
2030 mm
|
|
Infeed Height (C)
|
4120 mm
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length (A)
|
5135 mm
|
|
Equipment Width (B)
|
1895 mm
|
|
Equipment Height (C)
|
4120 mm
|
|
Equipment Weight (approx.)
|
15000 kg
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power Range
|
240 HP / 180 KW
|
|
Number of Motors
|
2
|
|
Drive Specification
|
Electric
|
|
Voltage
|
As Per Customer's Requirement
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber
|
L 1600 mm X W 940 mm
|
|
Knives Thickness
|
38 - 50 mm
|
|
Knives Diameter
|
530 mm
|
|
Hopper Opening (F x G)
|
L 2928 mm X W 1450 mm
|
|
Hopper Height (E)
|
1250 mm
|
|
Discharge Height (D)
|
1700 mm
|
|
Infeed Height (C)
|
3895 mm
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length (A)
|
5337 mm
|
|
Equipment Width (B)
|
1895 mm
|
|
Equipment Height (C)
|
3895 mm
|
|
Equipment Weight (approx.)
|
18000 kg
|
