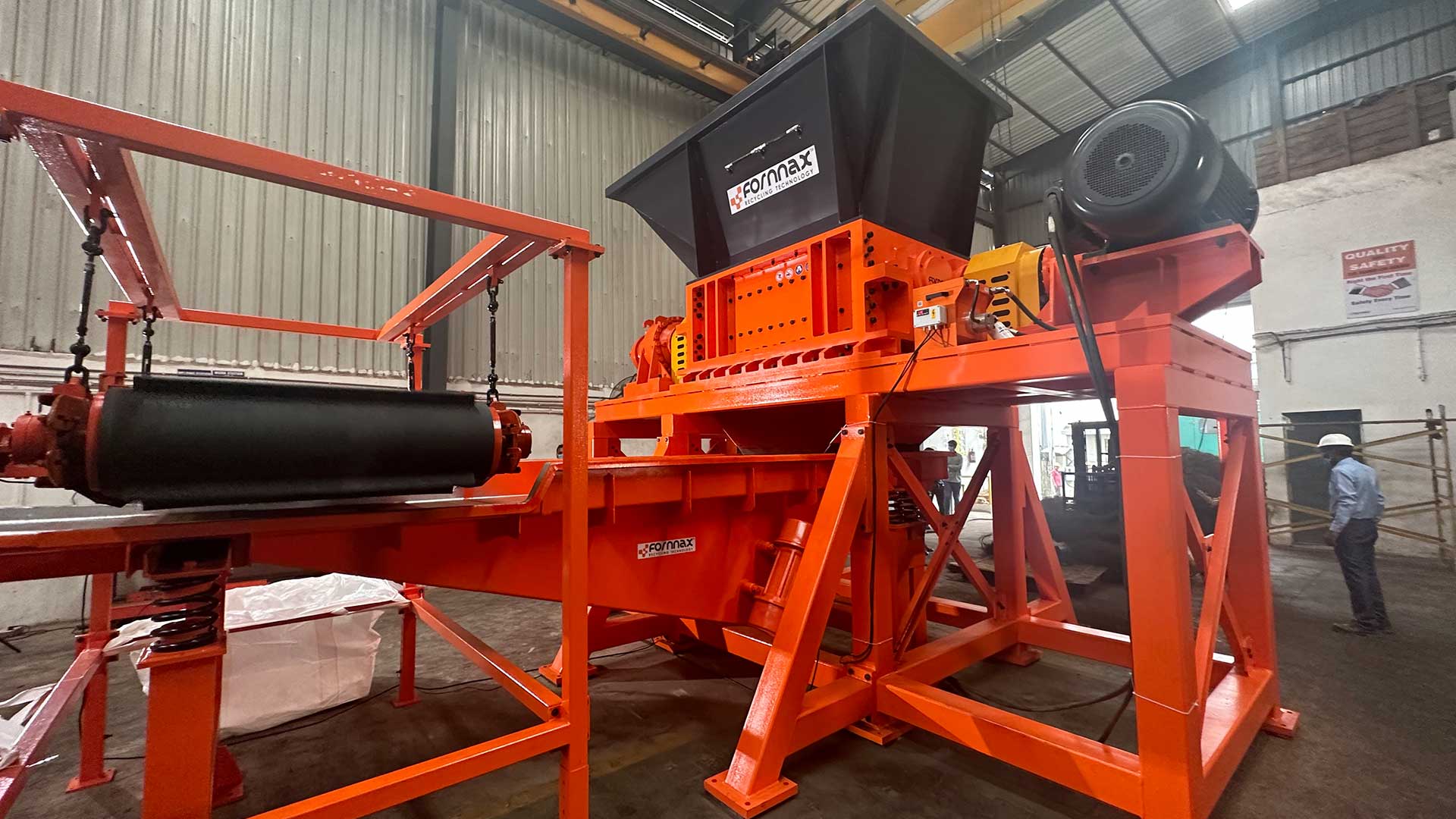

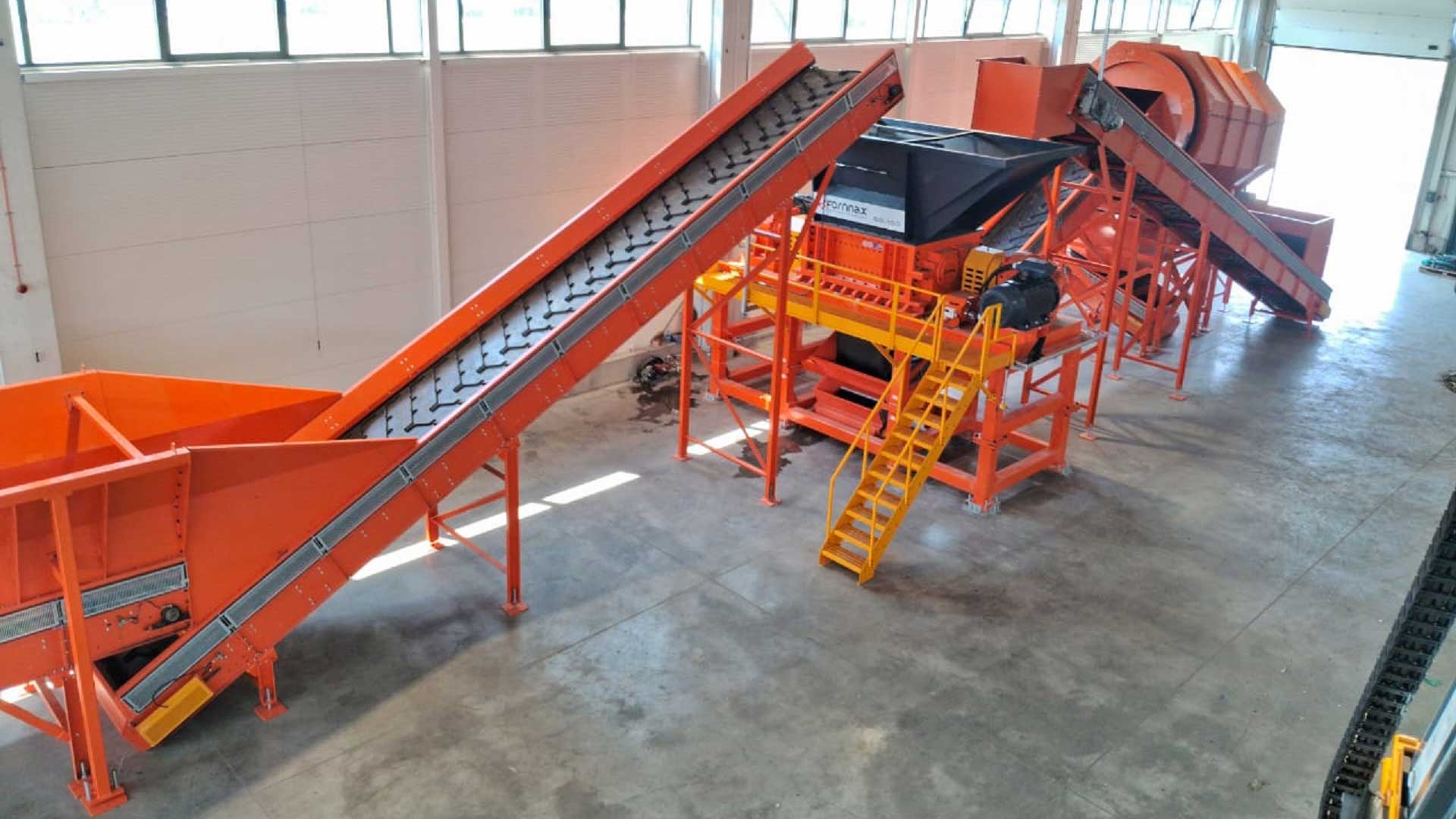

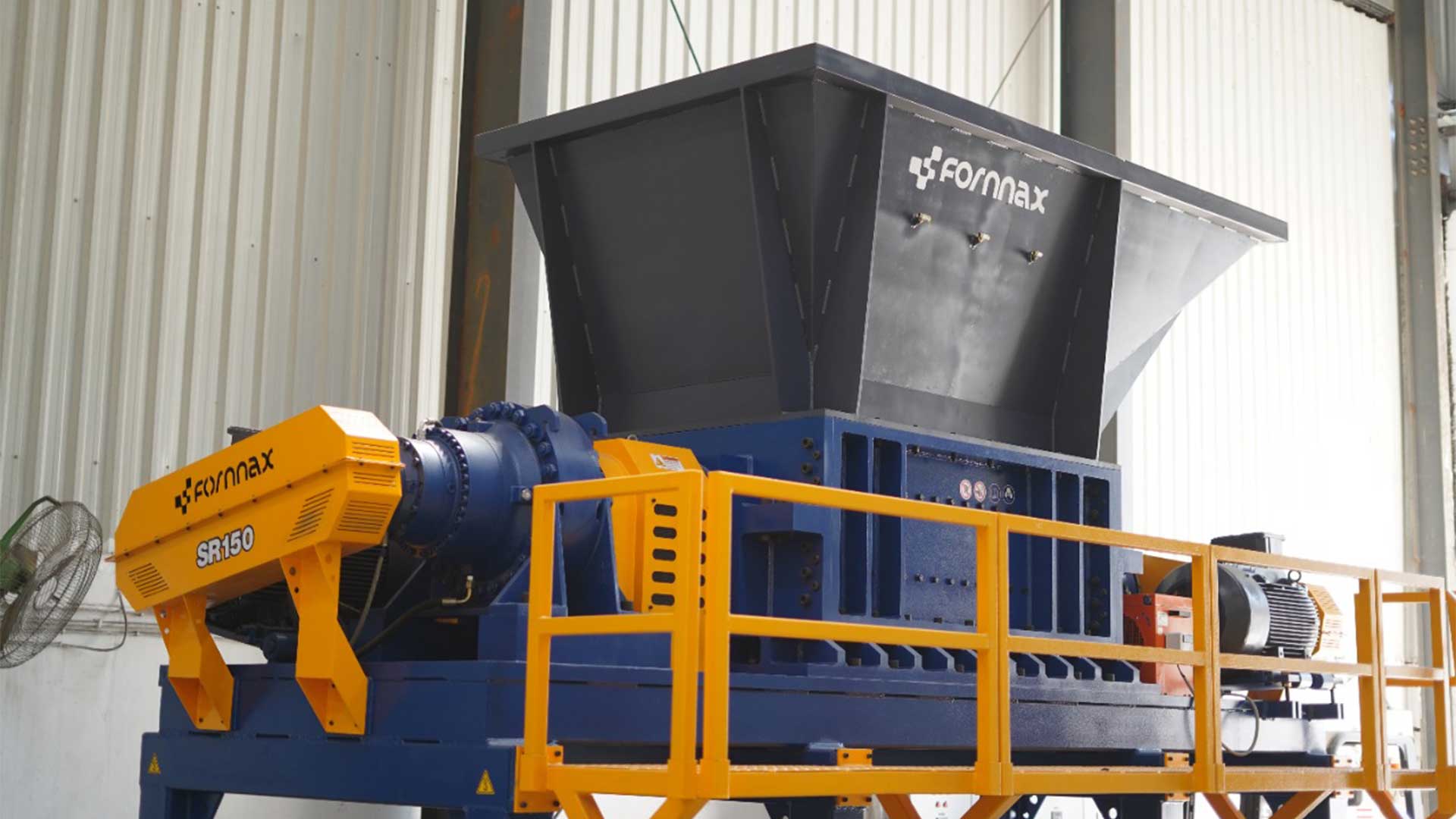

SR-Series Primary Shredders SR-150

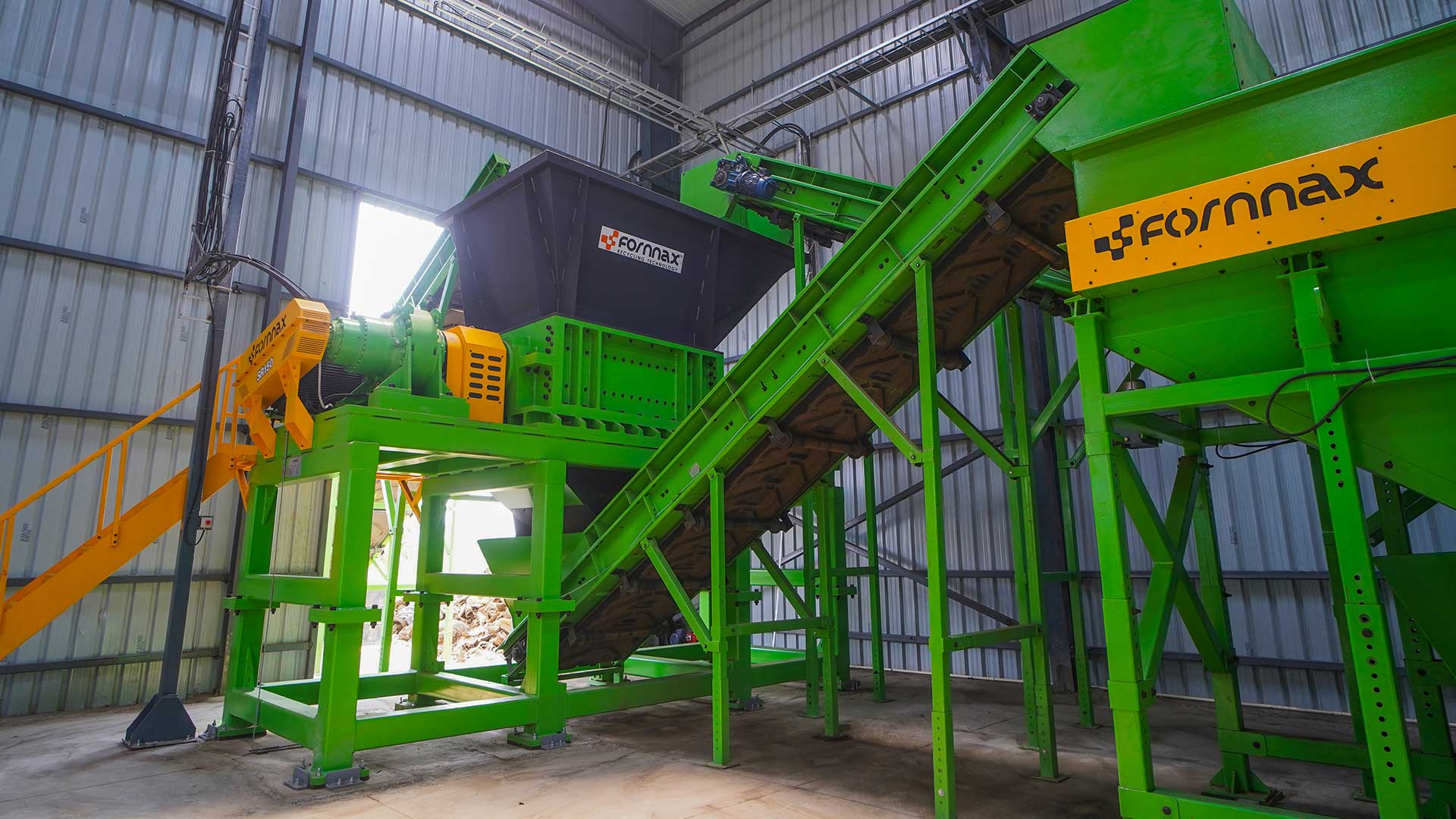

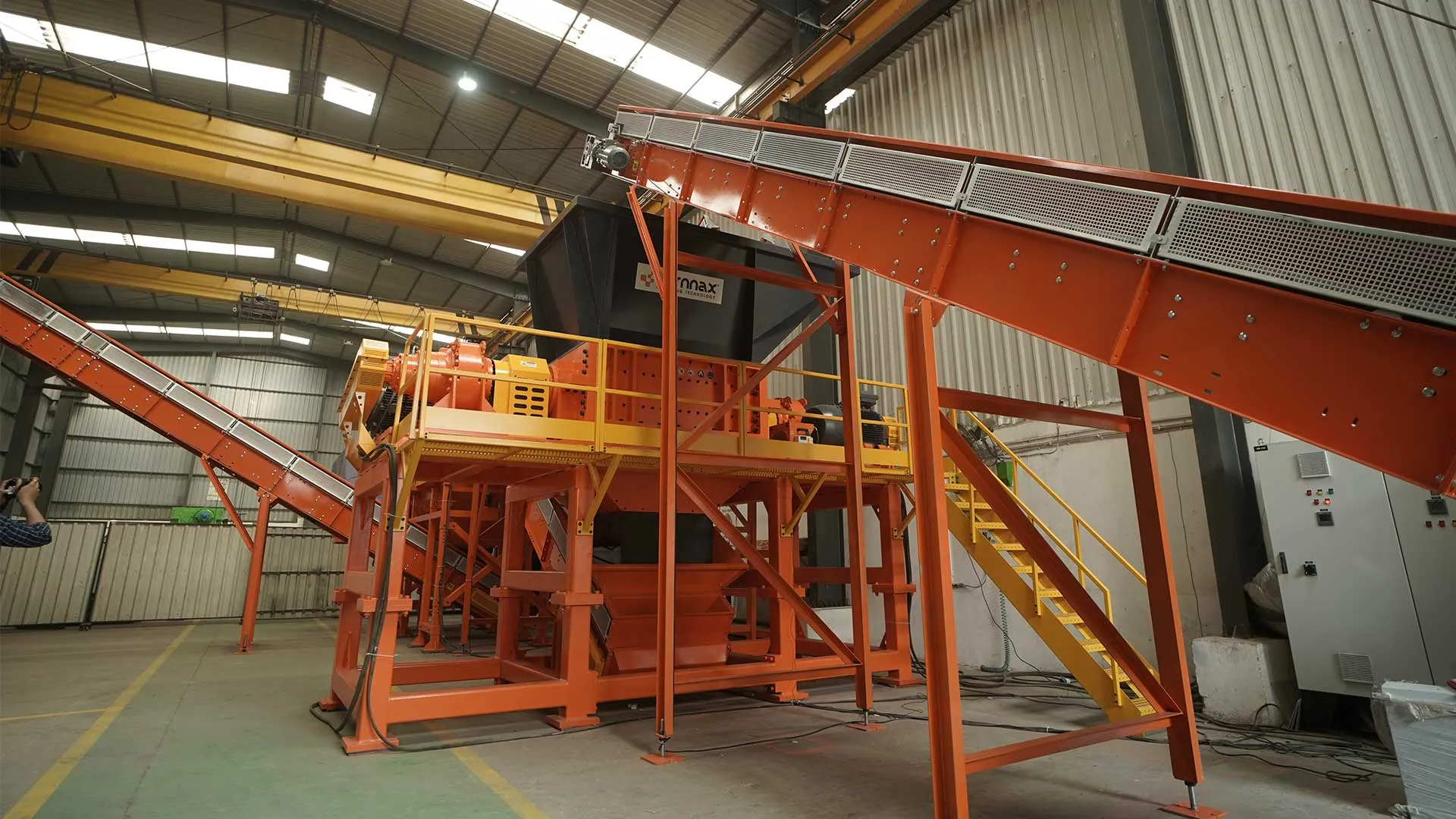

The Fornnax Dual-Shaft SR-150 Primary Shredder has an individual shaft driven by its motor, which generates high torque at low speed and provides plenty of power to the individual shaft. The Fornnax Two Shaft SR-150 Shredder is designed for multiple purposes, including size reduction of bulky waste, data destruction, and primary shredding, where output size variations are acceptable. The output size depends on the thickness of the knives and consists of strips of sizes varying from 50 mm to 60 mm.

APPLICATIONS

DOWNLOADS

SR-150 Specification Sheet

File size 3.01 Mb

DOWNLOAD NOW

Send download link to:

FEATURES

LOW MAINTENANCE COST

Specially designed knives with welding hard-face and re-grind multiple times for low-cost operations.

EASY MAINTENANCE

Rapid knives change system ensures easy maintenance

ADVANCED BEARING HOUSING

Advanced bearing housing -isolates bearings from cutting chamber contamination

LONGEVITY

Replaceable wear parts -to increase the durability of the cutting unit

PRECISION CONTROL

Specific stop auto-reverse feature -protects against over-feeding and damage by unsuitable materials

VERSATILITY

The output size can be controlled by using different knives thicknesses, and there is a wide range of shredding capabilities to handle a variety of materials

ADVANCE KNIVES TIGHTEN SYSTEM (ATS)

Advanced knives tighten system – to reduce the gap between knives and increase the lifespan of knives

CUSTOMIZATION

Inlet and outlet hopper- highly customized

Specifications

DRIVE & TRANSMISSION SYSTEM

TABLE HEADER 1	TABLE HEADER 2
Power Range	150-300 HP / 110-220 KW
Number of Motors	2
Drive Specification	Electric / Hydraulic
Voltage	As Per Customer's Requirement

CUTTING SYSTEM

TABLE HEADER 1	TABLE HEADER 2
Cutting Chamber	L 1600 mm X W 1195 mm
Knives Thickness	50 mm - 60 mm
Knives Diameter	650 mm
Hopper Opening (F x G)	L 3515 mm X W 1930 mm
Hopper Height (E)	1355 mm
Discharge Height (D)	2020 mm
Infeed Height (C)	4560 mm
