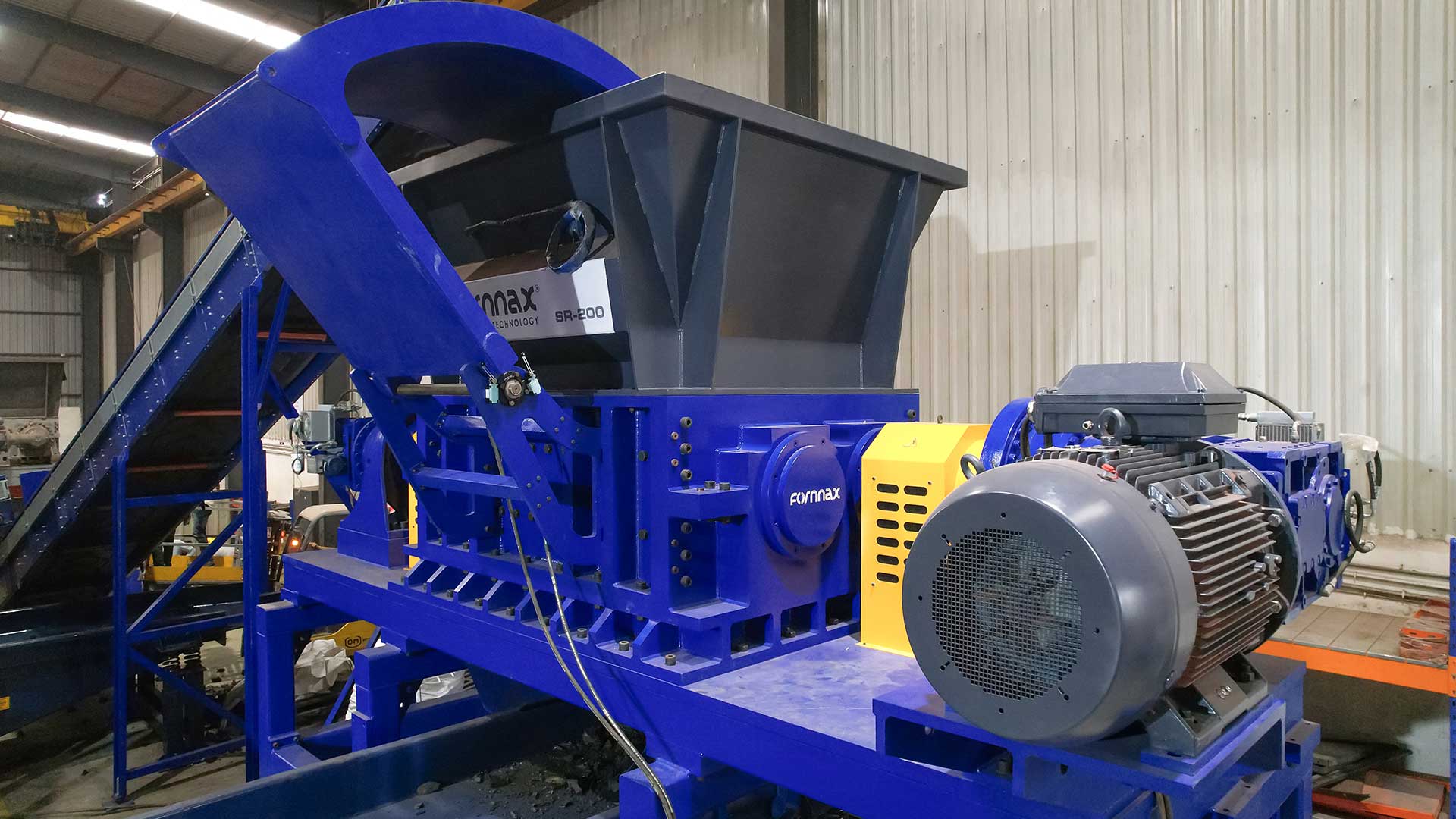

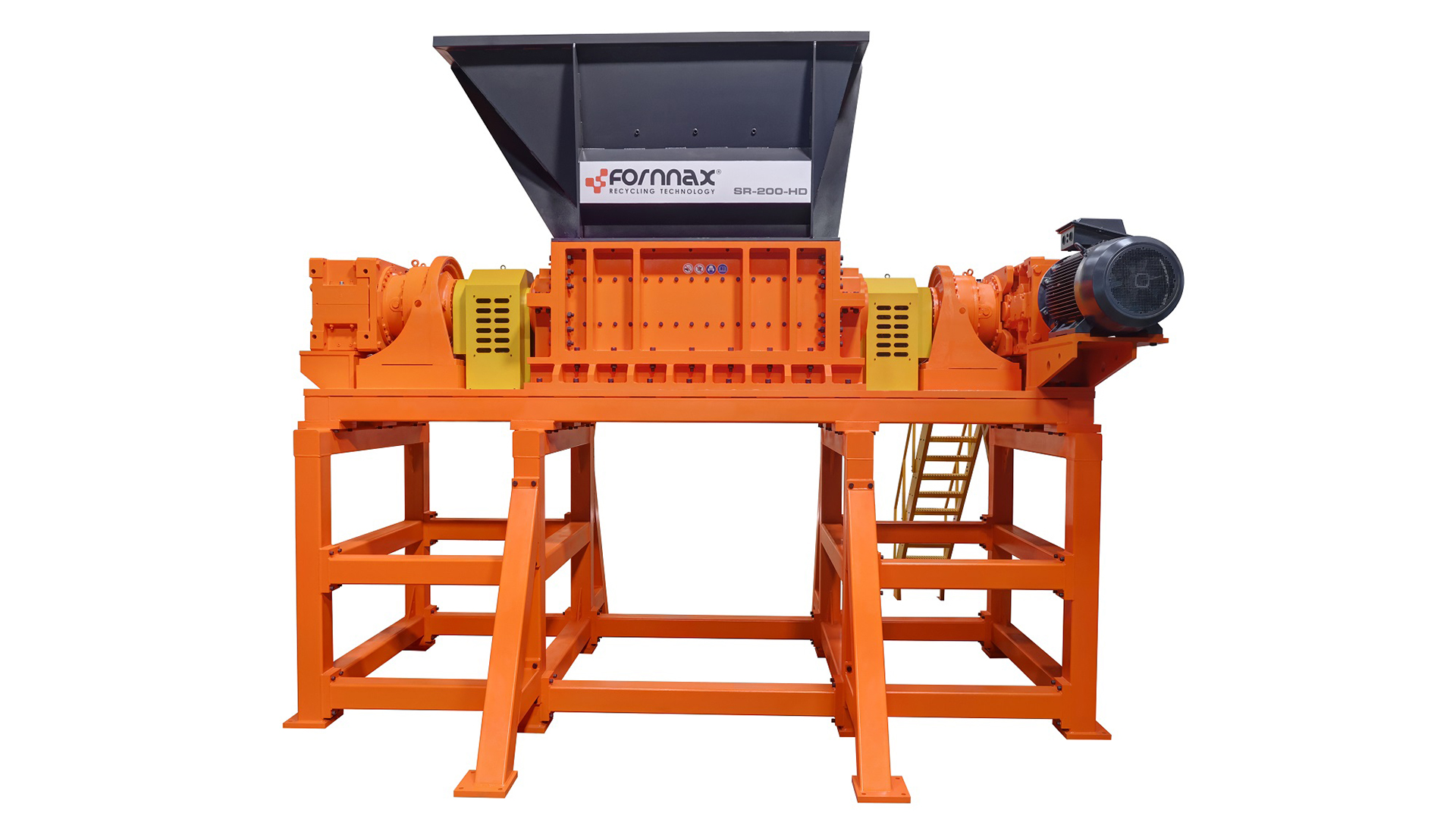

The Fornnax Dual-Shaft SR-200 / SR-200HD Primary Shredder has an individual shaft driven by its motor, which generates high torque at low speed and provides plenty of power to the individual shaft. The Fornnax Two Shaft SR-200 / SR-200HD Shredder is designed for multiple purposes, including size reduction of bulky waste, data destruction, and primary shredding, where output size variations are acceptable. The output size depends on the thickness of the knives and consists of strips of sizes varying from 60 mm to 75 mm.
PASSENGER / TRUCK & AGRICULTURE TYRES
HIGH VOLUME MUNICIPAL SOLID WASTE
MIXED & BULKY WASTE
WOOD PALLETS
PAPER / CARDBOARD
Send download link to:
Send download link to:
Specially designed knives with welding hard-face and re-grind multiple times for low-cost operations.
Rapid knives change system ensures easy maintenance
Advanced bearing housing -isolates bearings from cutting chamber contamination
Replaceable wear parts -to increase the durability of the cutting unit
Specific stop auto-reverse feature -protects against over-feeding and damage by unsuitable materials
The output size can be controlled by using different knives thicknesses, and there is a wide range of shredding capabilities to handle a variety of materials
Advanced knives tighten system – to reduce the gap between knives and increase the lifespan of knives
Inlet and outlet hopper- highly customized
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power Range
|
150-400 HP
|
|
Number of Motors
|
2
|
|
Drive Specification
|
Electric
|
|
Voltage
|
As Per Customer's Requirement
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber (LxW)
|
1807 mm X 1350 mm
|
|
Knives Thickness
|
75 mm
|
|
Knives Diameter
|
750 mm
|
|
Hopper Opening (LxW)
|
3460 mm X 2200 mm
|
|
Hopper Height
|
1560 mm
|
|
Discharge Height
|
1800 mm
|
|
Infeed Height
|
4500 mm
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length
|
6200 mm
|
|
Equipment Width
|
2300 mm
|
|
Equipment Height
|
4500 mm
|
|
Equipment Height (Approx.)
|
20500 kg
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power Range
|
430 HP / 320 KW
|
|
Number of Motors
|
2
|
|
Drive Specification
|
Electric
|
|
Voltage
|
As Per Customer's Requirement
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber (LxW)
|
L 1800 mm X W 1350 mm
|
|
Knives Thickness
|
60 - 75 mm
|
|
Knives Diameter
|
750 mm
|
|
Hopper Opening (F x G)
|
L 3460 mm X W 2200 mm
|
|
Hopper Height (E)
|
1560 mm
|
|
Discharge Height (D)
|
1800 mm
|
|
Infeed Height (C)
|
5300 mm
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length (A)
|
6450 mm
|
|
Equipment Width (B)
|
4872 mm
|
|
Equipment Height (C)
|
5300 mm
|
|
Equipment Height (approx.)
|
45000 kg
|
