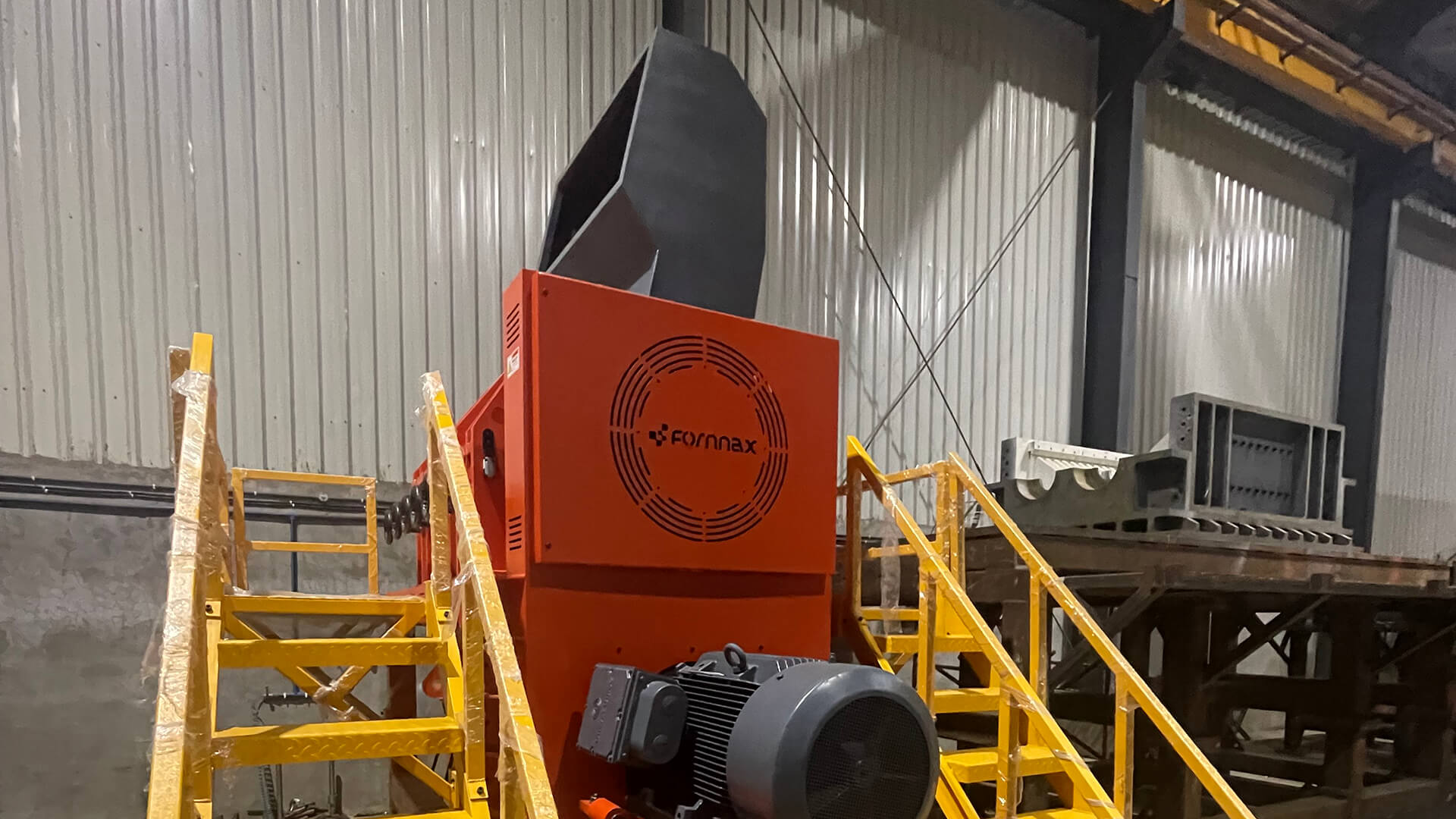

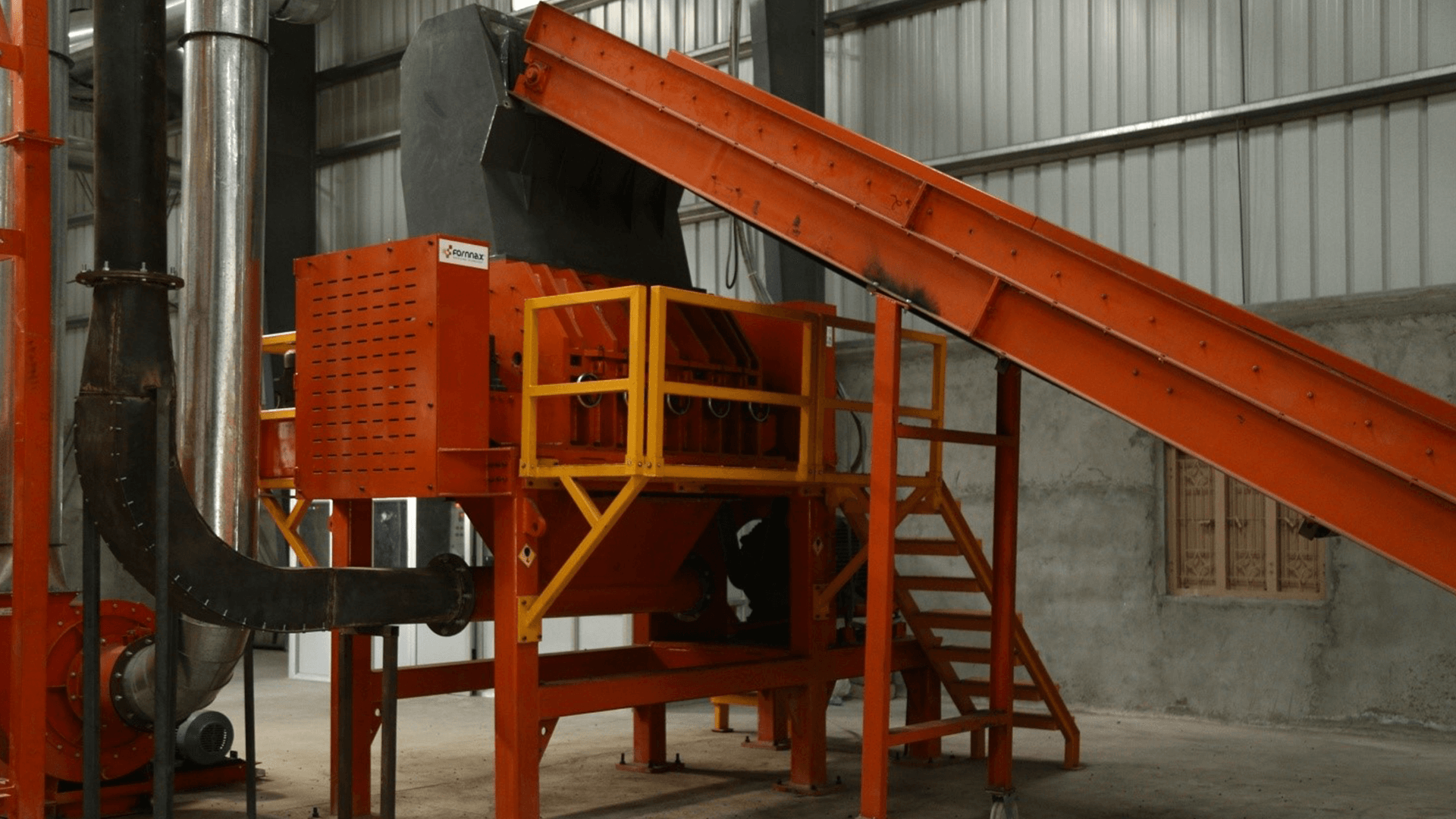

The Fornnax Granulator TR-1400 is a single-shaft heavy-duty machine designed to accept pre-shredded steel-free rubber mulch, wire cables, plastics, and many other non-ferrous materials for downsizing particles up to 4 mm. The machine is driven by a 120 HP to 150 HP motor, which provides sufficient power and torque to the rotor shaft. Low-cost blades and replaceable screens make the technology very reliable and efficient.
TYRES RECYCLING
WIRE CABLES SCRAP
ELECTRONIC AND ELECTRICAL WASTE
PLASTICS
RUBBER PRODUCTS WASTE
Send download link to:
The hydraulic hopper and screen opening ensure easy maintenance.
Advanced Bearing Housing – isolates bearings from cutting chamber contamination
Multiple time re-grind blades for low cost operations
Replaceable wear plates -to increase the durability of the cutting unit.
Specific Stop Feature: Control feeding according to load percentages to maximise efficiency and protect against damage.
Rapid screen change system to control the output size, and wide range of input capabilities to handle various materials
Inlet and Outlet hopper -highly customized
Highly sensitive Slip-clutch- to protect the machine against unsuitable materials.
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Power (HP Range)
|
150-215 HP / 110-160 KW
|
|
Number of Motors
|
1
|
|
Drive Specification
|
Electric
|
|
Voltage
|
As Per Customer's Requirement
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Cutting Chamber
|
L 1400 mm X W 700 mm
|
|
Rotor Diameter
|
700 mm
|
|
Rotor Length
|
1400 mm
|
|
No. of Rotating Blades
|
18
|
|
No. of Static Blades
|
6
|
|
Hopper Opening (OG x OF)
|
L 1350 mm X W 410 mm
|
|
Hopper Height (OE)
|
1390 mm
|
|
Discharge Height (OD)
|
1280 mm
|
|
Infeed Height (OC)
|
3645 mm
|
|
TABLE HEADER 1
|
TABLE HEADER 2
|
|---|---|
|
Equipment Length (A)
|
4150 mm
|
|
Equipment Width (B)
|
1765 mm
|
|
Equipment Height (C)
|
4300 mm
|
|
Equipment Height (Approx.)
|
9000 kg
|
