TR-900 LIGHT GRANULATORS

The Fornnax Granulator TR-900 is a single-shaft heavy-duty machine designed to accept pre-shredded steel-free rubber mulch, wire cables, plastics, and many other non-ferrous materials for downsizing particles up to 4 mm. The machine is driven by a 100 HP motor, which provides sufficient power and torque to the rotor shaft. Low-cost blades and replaceable screens make the technology very reliable and efficient.

APPLICATIONS

DOWNLOADS

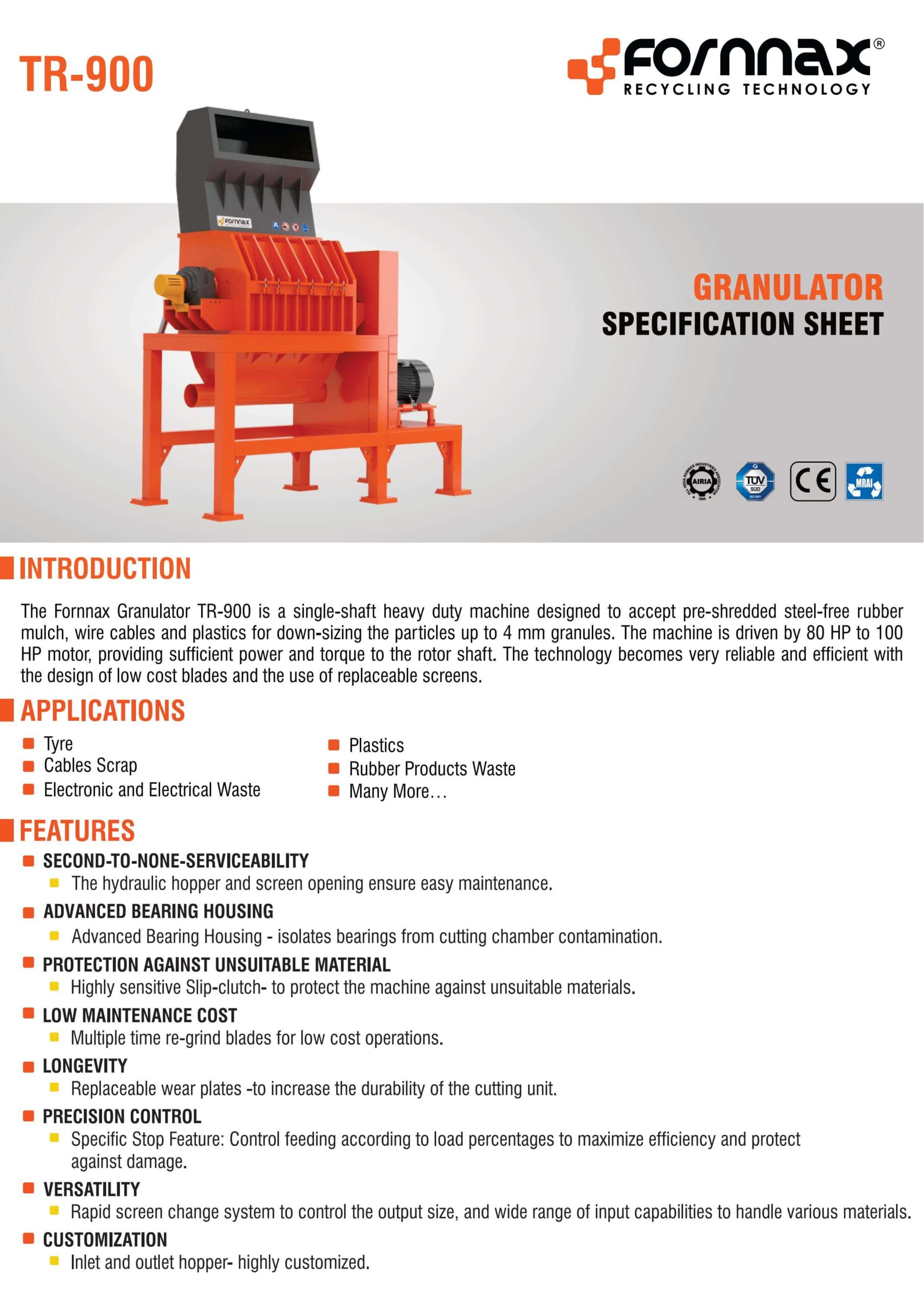

TR-900 Specification Sheet

File size 2.57 Mb

DOWNLOAD NOW

Send download link to:

FEATURES

SECOND-TO-NONE-SERVICEABILITY

The hydraulic hopper and screen opening ensure easy maintenance.

ADVANCED BEARING HOUSING

Advanced Bearing Housing – isolates bearings from cutting chamber contamination

LOW MAINTENANCE COST

Multiple time re-grind blades for low cost operations

LONGEVITY

Replaceable wear plates -to increase the durability of the cutting unit

PRECISION CONTROL

Specific Stop Feature: Control feeding according to load percentages to maximise efficiency and protect against damage

VERSATILITY

Rapid screen change system to control the output size, and wide range of input capabilities to handle various materials

CUSTOMIZATION

Inlet and Outlet hopper -highly customized

PROTECTION AGAINST UNSUITABLE MATERIAL

Highly sensitive Slip-clutch- to protect the machine against unsuitable materials

Specifications

DRIVE & TRANSMISSION SYSTEM

TABLE HEADER 1	TABLE HEADER 2
Power (HP Range)	80-100 HP / 60 -75 kW
Number of Motors	1
Drive Specification	Electric
Voltage	As Per Customer's Requirement

CUTTING SYSTEM

TABLE HEADER 1	TABLE HEADER 2
Cutting Chamber	L 965 mm X W 630 mm
Rotor Diameter	600 mm
Rotor Length	900 mm
No. of Rotating Blades	12
No. of Static Blades	4
Hopper Opening (OG x OF)	L 1000 mm X W 410 mm
Hopper Height (OE)	1225 mm
Discharge Height (OD)	1080 mm
Infeed Height (OC)	3040 mm
